Selection Guide for ITECH DC Power Supplies, E-loads and Combination Units
ITECH offers a broad range of DC Power Supplies, Electronic Loads and combinations.
This page will help you find the product which best suits your need.
Scroll down or select the area of interest
Benchtop DC Power Supplies
IT6100 High Speed DC Power Supply
Power range: 86 to 1200 W
20 to 72 V, 1.2 to 50 A
High speed high resolution programmable DC power supply is with ultra-high voltage rising speed. Support List programming.
Standard USB and RS232 interface. GPIB is optional.
IT6300 Triple Output Power Supplies
Power range: 90 to 180 W
30 to 60 V, 3 to 6 A
Triple channels DC power supply, each output voltage and current can be set from 0 to maximum rated output, supports series connection, parallel connection.
USB and RS232 on A and B-models.
USB and LAN on C-models
Optional on IT6302 and IT6322
Check for optional GPIB availability
IT6700 High Volt Autoranging DC Power Supply
Power range: 400 to 3000 W
32 to 1200 V, 5 to 220 A
High voltage DC power supply. IT6700H series provide list mode
USB and RS232 interface is standard.
IT6800 Dual Range Low Cost DC Power Supply
Power range: 180 to 216 W
18 to 72 V, 3 to 10 A
Low cost dual range DC power supply.
LIST mode and high accuracy setting and readback.
USB and RS232 interface is standard.
IT6900 Auto Ranging DC Power Supplies
Power range: 100 to 600 W
60 or 150 V, 5 to 25 A
Wide range programmable DC power supply with remote sense terminals.
RS232 and USB interfaces are standard.
IT6900B also has RS485 and analog interface.
Check for optional GPIB availability
IT-N6900 Performance DC Power Supply
Power range: 850 or 1500 W
60 or 150 V, 10 or 25 A
IT-N6900 provides stable and pure DC power, two current measurement ranges, up to 1μA current resolution. It has CC and CV priority settings. It includes Data Logging and List Programming features as standard. The form factor makes it suitable for both benchtop and ATE applications.
IT-N6900 series has built-in USB/LAN/digital IO communication interface, optional GPIB/RS232/analog IO. It supports SCPI programming and LabVIEW drivers are available.
Power range:
1850 or 3000 W
30 to 1200 V
5 to 150 A
The IT-M3140/IT-M3130 series Programmable DC Power Supply are specially designed for testing, production, R&D lab and ATE integration. It is only 2U half rack, but can output power up to 1850W and 3000W, and voltage output from 30V to 1200V. It has three output modes of constant voltage, constant current and constant power.
USB/LAN interface is standard. GPIB, RS232 and analog are optional
Power range:
1.5 to 150 W
±6 V to ±30 V
±100 mA to ±10 A
IT6400 series is a bipolar 2 and 4-kvadrant high precision power supply. It is available in models with maximum power from 1.5 W to 150 W. It can be used to test battery consumption with its ability to measure with 1 nA resolution. It can also simulate batteries and test a variety of other devices like power packs, LED's and many other.
LAN and USB interface is standard.
Benchtop Electronic DC Loads
IT8500+ Programmable DC Electronic Load
Power range: 150 to 3000 W
120 to 800 V, 5 to 240 A
IT8500+ series DC loads are a versatile instrument for static and dynamic testing of power supplies , batteries , DC - DC converters , battery chargers.
Optional USB and RS232 interface.
IT8500G+ Programmable DC Load with high sampling rate
Power range: 90 to 180 W
30 to 60 V, 3 to 6 A
The load is specifically designed for high-precision ripple testing, with a sampling bandwidth of up to 300kHz.
USB is standard on all models. LAN is standard on 8512x models.
IT8800 High Power
DC Electronic Load
Power range: 400 to 1500 W
32 to 1200 V, 5 to 220 A
IT8800 series has wide power range, voltage and current measurement speed up to 50KHz.
USB and RS232 interface is standard.
IT8912E LED Test Programmable DC Electronic Load
Power range: 72 to 128 W
8 to 150 V, 1.2 to 9 A
The high accuracy makes it ideal for testing LED's.The loads simulate the real output of LED lights with different characteristics.
USB and RS232 interface is standard.
System DC Power Supplies, E-Loads and Combination Units
IT2700 Series Multi-channel Modular Power System
8 slot Mainframe
Power Range:
Up to 2 kW in one mainframe
0 to 150 V
0 to 30 A
IT2700 Multi-channel Modular Power System
IT2700 series multi-channel modular power system brings ultra-high power density.
The 1U mainframe can include up to 8 modules (200W each) or 4 modules (500W each). Different modules can be grouped and synchronized.
The modules can be bidirectional DC power supplies, DC power supplies or regenerative loads. They can be connected in parallel.
The mainframe has built-in LAN, USB, CAN, digital I/O and free PC software.
IT-M3000 Series Compact Power Solutions
Power range:
100 to 850 W
10 to 600 V
3 to 100 A
The IT-M3000 series consists of DC supplies, E-Loads and combined Supplies and Loads. AC Sources are available in the same form factor. They are 1/2 rack wide and can be stacked on a bench like Lego brigs. They can be mounted in a rack one or two next to each other using optional rack kits.
USB/LAN, RS-232/CAN and GPIB interfaces are available as optional modules
See more about the different series below.
Power range:
200, 400 or 850 W
20 V to 600 V
3 A to 100 A
The IT-M3100 and IT-M3100D series consists of 16 models, providing 6 voltages grades, and can be combined to achieve a variety of output power. It has a flexible modular architecture, independent multi-channel design, and supports synchronous operation. Users can configure each channel according to the test requirements of DUT, up to max. 16*16 channels, to meet the needs of customized solutions. The D-models have two independent outputs
USB/LAN, RS-232/CAN and GPIB interfaces are available as optional modules
IT-M3200 High Precision DC Supply
Power range:
100, 200 or 360 W
20 V or 60 V
10 A or 20 A
The IT-M3200 series provides high accuracy set-up and current readback in three ranges. Readback resolution down to 100 nA. More units can operate in synchrous mode allowing fast test of multiple DUT's and precise timing of output on and off.
USB/LAN, RS-232/CAN and GPIB interfaces are available as optional modules
IT-M3400 Bidirectional Power Supply
Power range:
200, 400 or 800 W
60 V to 600 V
3 A to 30 A
The IT-M3400 bidirectional DC power supply integrates the features of a bidirectional power supply and a regenerative load. It keeps the advantages of high power density and modular architecture design of M series. It has high-speed and seamless switching between source and sink.
The load is regenerative. It returns the absorbed power to the grid.
The load supports these modes:
CV, CC, CP, and Battery Test.
If you need more load features consider the IT-M3600 series.
USB/LAN, RS-232/CAN and GPIB interfaces are available as optional modules
IT-M3600 Regenerative Power System
Power range:
200, 400 or 800 W
60 V to 600 V
3 A to 30 A
The IT-M3600 bidirectional DC power supply has the same features as the IT-M3400 series.
In addition it provides full load functionality including these modes:
CV, CC, CR, CP, Combination modes, Battery Test. It also supports I-V curve simulation to emulate a PV panel.
USB/LAN, RS-232/CAN and GPIB interfaces are available as optional modules

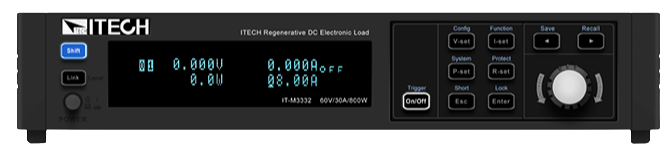

The IT-M3300 regenerative DC electronic load simulate various load characteristics. It feeds back the electrical energy to the grid instead. With high power density design, it can provide up to 800W power absorption with a size of only 1U half-rack.
The load supports these modes:
CC/CV/CP/CR/CV+Combination modes
USB/LAN, RS-232/CAN and GPIB interfaces are available as optional modules
IT-M3900 Series Power System
IT-M3800 Regenerative DC Load
Power range:
1.7 to 12 kW
10 to 1500 V
to 1020 A
The IT-M3900 series consists of DC supplies, E-Loads and combined Supplies and Loads. They are 1 or 2u high and offers very high power density.
USB/LAN//CAN and digital I/O interfaces are standard. GPIB and RS-232 are available as options.
See more about the different series below.
IT-M3900D High Power
DC Power Supply
Power range:
2 to 12 kW
10 to 1500 V
to 1020 A
The IT-M3900D series is a single channel output programmable DC power supply. It provides high power in limited space. Up to 6 kW in only 1u hight.
The CC/CV priority allows user to switch the output mode according to the different needs of the DUT priority. I provides high-precision and high-speed and a variety of standard communication interfaces.
IT-M3900C Bidirectional Power Supply
Power range:
2 to 12 kW
10 to 1500 V
to 1020 A
IT-M3900C is a regenerative bidirectional programmable DC power supply, it can be used as a regenerative electronic load, to absorb the consumed energy and feedback cleanly to the grid. IT-M3900C provides high accuracy output measurement, high reliability, high safety, and several measurement functions. It is suited for ATE testing, including applications like automotive electronics, new energy vehicles, photovoltaic energy storage, intelligent industrial equipment, battery simulation.
It provides the following load modes: CC/CV/ CW/CR
For additional load modes consider the IT-M3900B series.
IT-M3900B Regenerative Power System
Power range:
2 to 12 kW
10 to 1500 V
to 1020 A
The IT-M3900B provides the same features as the IT-M3900C. In addition it offers full DC-load functionality with more complex load modes.
IT-M3800 Electronic Regenerative DC Load
Power range:
2 to 12 kW
10 to 1500 V
to 720 A
IT-M3800 series regenerative DC electronic load can feed back power to the grid, which saves electricity and cooling costs. It can complete high-precision output and measurement, and supports multiple protection functions. It is well applied to the test of 5G communication and data center, industrial components test, aging test, PV and energy storage test, power optimizer and many other applications.
High Power DC solutions
IT-6000 Series Power System
IT-8000 Regenerative DC Load
Power range:
5 to 144 kW
80 to 2250 V
25 to 2040 A
The IT6000/IT8000 series consists of DC supplies, E-Loads and combined Supplies and Loads. The high power density allows an 18 kW DC supply and DC load in only 3u high space.
USB/LAN//CAN and digital I/O interfaces are standard. GPIB and RS-232 are available as options.
See more about the different series below.
IT6000D High Power DC Power Supply
Power range:
5 to 144 kW
80 to 2250 V
25 to 2040 A
IT6000D, single channel output programmable DC power supply, provide high-power and stable DC supply. The auto-ranging feature enables a wide range of voltage and current combinations at full power
IT6000C Bidirectional DC Power Supply
Power range:
5 to 144 kW
80 to 2250 V
25 to 2040 A
The bi-directional programmable DC power supply of IT6000C series combines two functions in one: source and sink with energy regeneration. Based on these functions, IT6000C offers the functionality of two-quadrant operation. The regenerative capability enables the energy consumed to be fed back to the grid, saving costs from energy consumption and cooling.
IT6000B Regenerative DC Power System
Power range:
5 to 144 kW
80 to 2250 V
25 to 2040 A
The IT6000B provides the same features as the IT6000C. In addition it offers full DC-load functionality with more complex load modes.
IT8000 Electronic Regenerative DC Load
Power range:
5 to 144 kW
80 to 2250 V
25 to 2040 A
IT8000 series is a family of high power regenerative electronic loads with compact size. The highly integrated capability enables the e-load to simulate various e-load characteristics, and return the consumed energy back to the grid cleanly, saving costs related to energy consumption and cooling, meanwhile eco-friendly..
IT-6600B Series Power System
IT-6600C Series Bidirectional Power System
Power range:
42 to 420 kW (10 MW parallel connected)
(42 kW in 3U)
0 to 1200/1600 or 2250 V
Maximum 2000 A
IT6600 series DC power adopts advanced third generation SiC technology.
A 3U height single unit can output 21 kW each in dual channels. If the two independent channels are connected in series/parallel, it can reach maximum power of 42kW.
The C-model is also an advanced regenerative E-load returning power to the grid. The two outputs can be freely selected to have load or supply function.
USB/LAN//CAN and digital I/O interfaces are standard. GPIB, RS-232 and anlog interfaces are available as options.
IT6500/00A Series General Purpose DC Power Supply
Power range: 800 to 1200 W
80 or 150 V, 30 to 60 A
General purpose power supplies for R&D and production.
Models are IT6502/02D/02D-L, IT6512/12A/12-L/12A-L and IT6513/13A/13-L/13A-L
A-models do not have LIST mode and some special functions.
All models have USB, RS232 and RS485.
Models with suffix "L" have LAN interface.
IT6500C/D Wide-range High-power DC Power Supply
Power range: 1.2 to 6 kW
80 to 1000 V, 10 to 240 A
IT6500D are High performance DC supplies with stable output.
The IT6500C are two quadrant supplies with fast switching between quadrants. Designed for continuous source and sink testing requirements.
USB, LAN, CAN and RS232 interfaces are standard.
Consider the IT-M3900C or the IT6000C series as alternatives.
Multichannel programmable electronic loads. Support up to 16 channels with mainframe extension.
Modules are operated using the keypad and rotary knob on the front panel or the remote controlled SCPI commands.
The "Plus" modules (IT87xxP+) provides the highest speed and precision. In addition they offer operation down to zero Volt and three current ranges, which means higher accuracy and lower ripple.
LAN, USB and RS232 interface is standard.
IT-N2100 series solar array simulator is a high-performance DC power supply with fast change of IV curve. It can simulate the IV output characteristics of various solar panels under different environments (temperature, light, shadow decay, aging). It can be applied for the tests of solar micro-inverter, power optimizer, satellite power system, sail power array and so on. IT-N2100 has low ripple, low noise and fast MPPT, supports multi-channel synchronous control and high voltage topology.
LAN, USB and digital interface is standard.
IT2800 Graphical Source Measure Unit
Power range:
Max. 20 W
±1000 V or ±200 V
±1 A to ±3 A
±10 A pulsed
