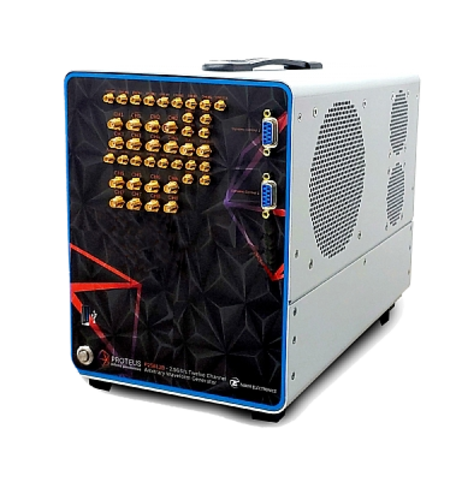

Tabor TB-P9488D Desktop Arbitrary Waveform Transceiver - 9GS/s 16Bit 8GS Mem 8CH 16 Markers
Key Features
- Eight channels 9GS/s 16 bit, AWG & AWT configurations
- 8GHz Bandwidth, 5.4GS/s 12 bit digitizer option for feedback control system and conditional waveform generation
- Integrated digital up-converter to RF frequencies for coherent multi-channel RF applications across multiple modules
- Excellent phase noise and spurious performance
- Integrated digital up-converter to RF frequencies for coherent multi-channel RF applications across multiple modules
- Sspace efficient Desktop platform, with USB 3.0, 10G Ethernet and Thunderbolt high speed interfaces.
High speed PCIe GEN3 x8 lanes communication interface - Up to 16GS waveform memory with the ability to simultaneously generate and download waveforms
- Real time data streaming directly to the FPGA for continuous and infinite waveform generation
- Customizable FPGA for use embedded IP and application specific requirements
- Innovative task oriented sequence programming for maximum flexibility to generate any imaginable scenario
The desktop version of the Proteus arbitrary waveform generator series offers up to 12 channels in a 4U, half 19” dedicated chassis. The compact form size and small footprint save valuable bench space. So for synchronized, phase coherent, multi-channel applications such as quantum physics and radar applications the Proteus arbitrary waveform transceiver is an ideal, space efficient and cost effective solution.
The desktop version of the Proteus arbitrary waveform generator series offers up to 12 channels in a 4U, half 19” dedicated chassis. The compact form size and small footprint save valuable bench space. So for synchronized, phase coherent, multi-channel applications such as quantum physics and radar applications the Proteus arbitrary waveform transceiver is an ideal, space efficient and cost effective solution.
