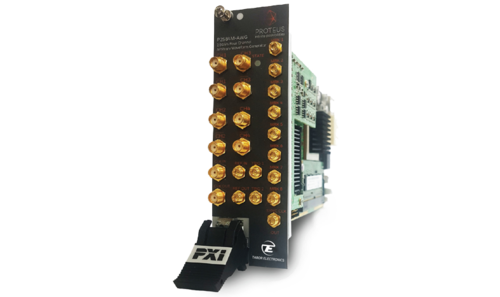

Tabor TB-P9482M PXIe Arbitrary Waveform Transceiver - 9GS/s 16Bit 8GS Mem 2CH 8 Markers
Key Features
- Two channels 9GS/s 16 bit, AWG & AWT configurations
- 8GHz Bandwidth, 5.4GS/s 12 bit digitizer option for feedback control system and conditional waveform generation
- Integrated digital up-converter to RF frequencies for coherent multi-channel RF applications across multiple modules
- Excellent phase noise and spurious performance
- Integrated digital up-converter to RF frequencies for coherent multi-channel RF applications across multiple modules
- Modular and space efficient PXI Express platform, easily scalable to hundreds of channels.
- High speed PCIe GEN3 x8 lanes communication interface
- Up to 16GS waveform memory with the ability to simultaneously generate and download waveforms
- Real time data streaming directly to the FPGA for continuous and infinite waveform generation
- Customizable FPGA for use embedded IP and application specific requirements
- Innovative task oriented sequence programming for maximum flexibility to generate any imaginable scenario
Based on PXI Express industry standard the modular architecture can easily scale up to hundreds of channels, while keeping the required space to a minimum. The compact form size enables up to 4 generator output channels and 2 digitizer input channels to occupy only 3 PXI slots.
The new addition to the Proteus arbitrary waveform generator series offers 8GHz Bandwidth, 5.4GS/s 12 bit digitizer option for a feedback control system, and conditional waveform generation.
Based on PXI Express industry standard the modular architecture can easily scale up to hundreds of channels, while keeping the required space to a minimum. The compact form size enables up to 4 generator output channels and 2 digitizer input channels to occupy only 3 PXI slots.
The new addition to the Proteus arbitrary waveform generator series offers 8GHz Bandwidth, 5.4GS/s 12 bit digitizer option for a feedback control system, and conditional waveform generation.
