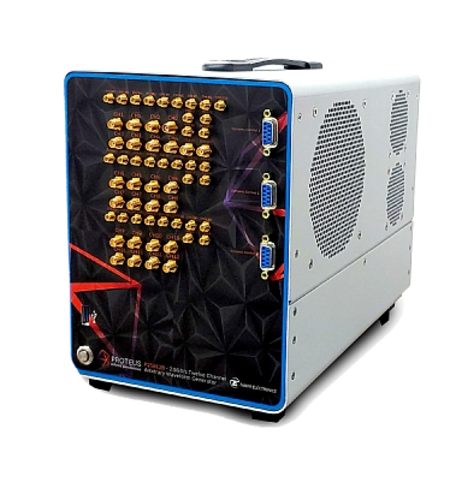

Tabor TB-P94812D Desktop Arbitrary Waveform Transceiver - 9GS/s 16Bit 8GS Mem 12CH 24 Markers
Key Features
- Twelve channels 9GS/s 16 bit, AWG & AWT configurations
- 8GHz Bandwidth, 5.4GS/s 12 bit digitizer option for feedback control system and conditional waveform generation
- Integrated digital up-converter to RF frequencies for coherent multi-channel RF applications across multiple modules
- Excellent phase noise and spurious performance
- Integrated digital up-converter to RF frequencies for coherent multi-channel RF applications across multiple modules
- Sspace efficient Desktop platform, with USB 3.0, 10G Ethernet and Thunderbolt high speed interfaces.
High speed PCIe GEN3 x8 lanes communication interface - Up to 16GS waveform memory with the ability to simultaneously generate and download waveforms
- Real time data streaming directly to the FPGA for continuous and infinite waveform generation
- Customizable FPGA for use embedded IP and application specific requirements
- Innovative task oriented sequence programming for maximum flexibility to generate any imaginable scenario
The desktop version of the Proteus arbitrary waveform generator series offers up to 12 channels in a 4U, half 19” dedicated chassis. The compact form size and small footprint save valuable bench space. So for synchronized, phase coherent, multi-channel applications such as quantum physics and radar applications the Proteus arbitrary waveform transceiver is an ideal, space efficient and cost effective solution.
