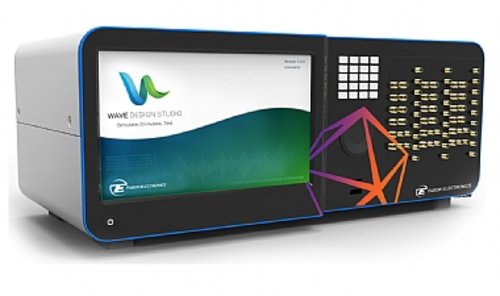

Tabor TB-P2584B Benchtop Arbitrary Waveform Transceiver - 2.5GS/s 16Bit 2GS/s Mem 4CH 8 Markers
Key Features
- Four channel 2.5GS/s 16 bit AWG & AWT configurations
- 9GHz bandwidth, 2.7GS/s 12 bit digitizer option for feedback control system and conditional waveform generation
- Excellent phase noise and spurious performance
- Integrated NCO for digital up-converting to microwave frequencies
- Standalone 4U, 19” wide benchtop platform, with 9” touch display, USB 3.0, 10G Ethernet and thunderbolt high speed interfaces.
- Up to 16GS waveform memory with the ability to simultaneously generate and download waveforms
- Real time data streaming directly to the FPGA for continuous and infinite waveform generation
- User customizable FPGA for application specific solutions
- Innovative task oriented sequence programming for maximum flexibility to generate any imaginable scenario
Introducing Tabor’s all new Proteus series, the world’s first Arbitrary Waveform Transceiver. In its benchtop platform, with a 9” touch display and on-board PC the system integrates the ability to transmit, receive and perform digital signal processing all in a single instrument. The fully standalone operated system, offers industry leading performance, various configuration options, an innovative task oriented programming, and user programmable FPGA. So whether it is for aerospace and defense, telecommunications, automotive, medical or high-end physics applications Proteus opens the door to a world of infinite possibilities.
Introducing Tabor’s all new Proteus series, the world’s first Arbitrary Waveform Transceiver. In its benchtop platform, with a 9” touch display and on-board PC the system integrates the ability to transmit, receive and perform digital signal processing all in a single instrument. The fully standalone operated system, offers industry leading performance, various configuration options, an innovative task oriented programming, and user programmable FPGA. So whether it is for aerospace and defense, telecommunications, automotive, medical or high-end physics applications Proteus opens the door to a world of infinite possibilities.
