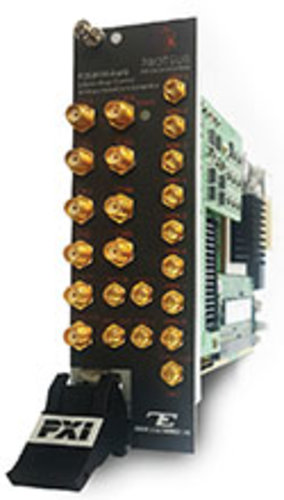

Tabor TB-P1282M PXIe Arbitrary Waveform Transceiver - 1.25GS/s 16Bit 1GS/s Mem 2CH 4 Markers
Key Features
- Dual channel 1.25GS/s AWG
- Dual channel, 9GHz Bandwidth, 2.7GS/s 12 bit digitizer option for a complete arbitrary waveform transceiver system
- Integrated NCO for digital upconverting to microwave frequencies
- Excellent phase noise and spurious performance
- Feedback control system for conditional waveform generation
- Modular PXI Express platform, easily scalable to hundreds of channels.
- High speed PCIe GEN3 x8 lanes communication interface
- Up to 16GS waveform memory with the ability to simultaneously generate and download waveforms
- Real time data streaming directly to the FPGA for continuous and infinite waveform generation
- User customizable FPGA for demodulation, digital filtering and application specific solutions
- Innovative task oriented sequence programming for maximum flexibility to generate any imaginable scenario
Introducing Tabor’s all new Proteus series, the world’s first Arbitrary Waveform Transceiver. Based on a PXIe platform, the system integrates the ability to transmit, receive and perform digital signal processing all in a single instrument. The modular, compact and cost effective system offers industry leading performance, various configuration options, an innovative task oriented programming, and user programmable FPGA. So whether it is for aerospace and defense, telecommunications, automotive, medical or high-end physics applications Proteus opens the door to a world of infinite possibilities.
