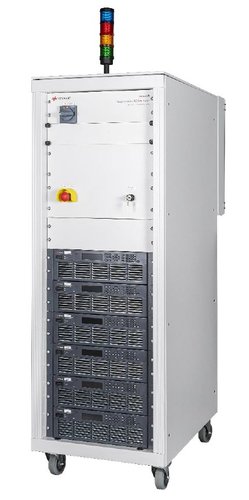

Keysight SL1202A Regenerative 3-Phase AC Emulator 346VL-N / 600 VL-L, 63 A, 45 kVA
Key Features and Functions
- Test to IEC 61000 standards and grid compliance standards, such as UL 1741 SA and IEEE 1547.1
- 100% regenerative (bidirectional) power solution with > 85% efficiency
- Get up and running immediately with intuitive soft front panel (SFP)
- A complete, one-vendor solution of hardware, software, consulting, and support services worldwide for all grid-edge applications, such as EVSE / EV charging test, solar / PV inverter test, battery energy storage system test
Key Specifications:
- Output Phase: 1, 2, or 3 (3-phase selectable, 1-phase @ max power)
- Max Power: 45 kVA
- Max Power per phase: 15 kVA
- Voltage range: 0-600 V L-L, 0-346 V L-N
- Max current (3-phase) rms: 63 A
- Current @ Max Voltage: 25 A
- Max current (1-phase) rms: 189 A
- Frequency range: 40-75 Hz
Achieves high voltage without additon of large, expensive transformer
The SL1200A series was designed to handle all your 3-phase AC test needs up to 1200 VAC, from 30 kVA to 630 kVA without the need for a transformer. Two voltage ranges are available: 600 VAC and 1200 VAC. The 600 VAC models are ideal for low voltage inverter test as well as EV and EVSE charging test applications. The 1200 VAC models allow for (HVRT) testing at the IEC LV-AC limit without the need for a large, complex test setup.
Key features and specifications of the SL1200A Three-Phase AC Emulator
- AC Output Voltage, 3-Phase: 346 VL-N / 600 VL-L or 692 VL-N / 1200 VL-L, no transformer needed!
- AC Output Power (Total): 30 kVA, 45 kVA, 90 kVA or parallel to 630 kVA
- Frequency Range: 40 to 75 Hz
- DC Output Voltage (with Option SDC): ±500 V or ±1000 V
- DC Output Power (with Option SDC): 40 kW, 60 kW, or 120 kW
DC Operation (Option SDC)
All SL1200A models offer a DC output option. With this option, set the SL1200A to DC mode in the SFP and operate as a high-power, regenerative DC power supply / electronic load.
