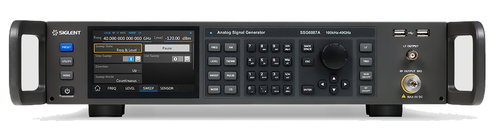

Siglent SSG6087A 100 kHz-40 GHz Microwave Analog Signal Generator
Key Features and Functions
- Frequency up to 13.6, 20 or 40 GHz.
- 0.01 Hz frequency setting resolution.
- Level setting range: -130 dBm ~ 24 dBm.
- Phase Noise: -135 dBc / Hz @ 1 GHz, 20 kHz offset (typ..)
- Level error ≤ 0.7 dB (typ.).
- Provides AM analog modulation with internal, external or Int+Ext source.
- Single pulse, double pulse and pulse train generator (option).
- The power meter control kit can easily use the power meter to measure power, control power output and correct line loss.
- 5-inch TFT capacitive touch screen, mouse and keyboard supported.
Interfaces and protocols:
- Standard: USB Host, USB Device (USBTMC), LAN (VXI-11, Socket, Telnet).
- Optionel interface: GPIB
- Web browser remote control on PC and mobile terminals
Product Overview
In order to develop, test and optimize more complex systems, the measurement technology must exceed the desired system performance. The SSG6000A is designed to provide high performance signal quality that meets the stringent requirements of the latest microwave and millimeter wave testing while extending customer value in size, speed, and cost.
SSG6000A Series RF Signal Generator supports AM and pulse modulation, pulse sequence generator, power meter control and other functions. With standard OCXO reference hardware module inside ensures high-precision and high stability signal output. It is not only an ideal local oscillator and clock source, but also a high-performance analog signal source suitable for applications in R&D and production. SIGLENT provides a total solution backed by proven reliability and our standard 3 years warranty plus pre-sale and post-sale support. Coupled with solid RF performance, a flexible and pure signal, the SSG6000A is a complete solution that makes a great addition to any RF engineer’s workbench kit.
