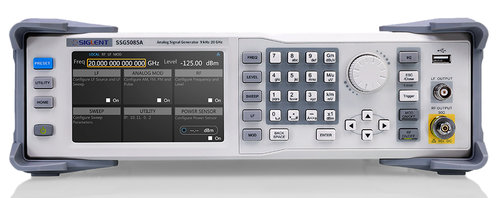

Siglent SSG5085A 9 kHz-20 GHz Microwave Signal Generator
Key Features and Functions
- Frequency up to 13.6 or 20 GHz.
- 0.001 Hz frequency setting resolution.
- Level setting range: -20 dBm to +25 dBm standard and -130 dBm. 25dBm with SSG5080A-LP option.
- Phase Noise: -120 dBc/Hz @ 1 GHz, 20 kHz offset (typ.).
- Level error ≤0.7 dB (typ.).
- Provides AM, FM, PM analog modulation with internal, external or Int + Ext source.
- Single pulse, double pulse and pulse-train generator (option)
- The power meter control kit can easily use the power meter to measure power, control power output and correct line loss.
- 5-inch TFT capacitive touch screen, mouse and keyboard supported
Interfaces and protocols:
- Standard: USB Host, USB Device (USBTMC), LAN (VXI-11, Socket, Telnet).
- Optionel interface: GPIB
- Web browser remote control on PC and mobile terminals.
Documents and Software Solutions:
Product Overview
SSG5083A/SSG5085A microwave signal generator’s output frequency range from 9 kHz to 13.6/20 GHz, supports AM & FM & PM modulation, pulse modulation, pulse sequence generator, power meter control and other functions. With standard OCXO reference hardware module inside ensures high-precision and high stability signal output. It is designed for communication and other fields. And it is suitable for various application scenarios such as R&D and production.
