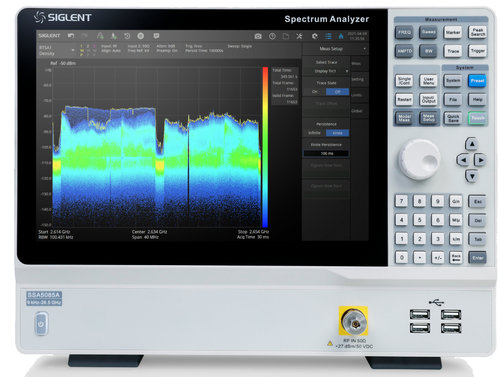

Siglent SSA5083A 9 kHz to 13.6 GHz Spectrum Analyzer
Key Features and Functions
- Frequency Range from 9 kHz up to 13.6 GHz/ 26.5 GHz.
- -165 dBm/Hz Displayed Average Noise Level (Typ.)
- -105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)
- Real-Time spectrum analysis
- 25 MHz/40 MHz Analysis Bandwidth.
- 100% POI 7.20 μs, Dynamic Range 60 dB, Multi-view for Density, Spectrogram and PvT.
- Channel power, ACPR, OBW, Harmonic, TOI measurement etc.
- Analog Modulation Analysis and Vector Digital Modulation Analysis.
- Bluetooth Modulation Analysis.
- Pulse measurement.
- Phase Noise measurement.
- Noise Figure measurement.
- Electromagnetic compatibility measurement.
- 12.1 inch Multi-Touch Screen, HDMI output.
Interfaces and protocols:
- LAN, USB Device, USB Host (USB-GPIB)
- Remote Control Capability SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet
- Remote Controller NI-MAX, Web Browser, Easy Spectrum software, File Explore
- Web Browser Remote Control on PC and Mobile Terminals and File Operation.
Documents and Software Solutions:
Product Overview
The SIGLENT SSA5000A spectrum analyzers are powerful and flexible tools for complex RF spectrum and signal analysis. With the capability of real-time spectrum analysis, the analyzer can provide multi-dimensions data displays, and advanced triggering to solve modern RF spectrum challenges, like channel power measurement, hopping frequency, conflict channel, and spectrum interference.
Applications include broadcast monitoring/evaluation, cellular site, IoT, WLAN and Bluetooth surveying, research and development, education, production, and maintenance.
Product Overview
The SIGLENT SSA5000A spectrum analyzers are powerful and flexible tools for complex RF spectrum and signal analysis. With the capability of real-time spectrum analysis, the analyzer can provide multi-dimensions data displays, and advanced triggering to solve modern RF spectrum challenges, like channel power measurement, hopping frequency, conflict channel, and spectrum interference.
Applications include broadcast monitoring/evaluation, cellular site, IoT, WLAN and Bluetooth surveying, research and development, education, production, and maintenance.
