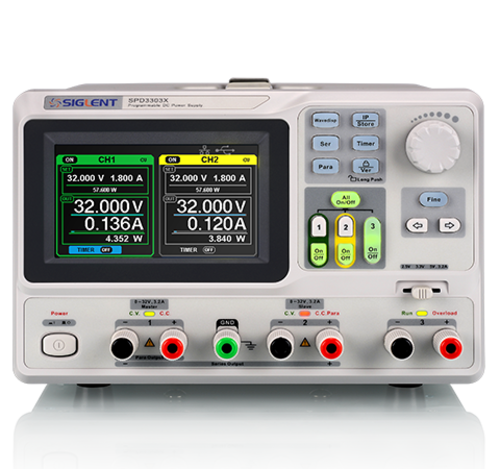

Siglent SPD3303X Programmable DC Power Supplies, 3 outputs, two 32 V /3.2 A, one 2.5 V / 3.3 V and 5 V / 3.2 A, 220 W total. High Resolution. USB and LAN interface
Key Features and Functions
- 3 independently controlled and isolated outputs: Two 32 V/3.2 A, one 2.5 V / 3.3 V / 5 V / 3.2 A × 1, total 220 W
- 5 digit Voltage/4 digit Current Display, Minimum Resolution: 1 mV/1 mA (SPD3303X)
- Timing function provides programmed output steps
- 4.3 inch true color TFT- LCD 480 x 272 display
- 3 types of output modes: independent, series (60 V max), and parallel (6.4 A max)
- Intelligent temperature-controlled fan effectively reduces fan noise
- Clear graphical interface, with waveform display function
- Five internal groups of system parameter save/recall, supports data storage space expansion
- Free PC software: Easypower. Also supports remote programming and includes a LabView driver
Interfaces and protocols:
- USB and LAN interface
Documents and Software Solutions:
Product Overview
Siglent’s SPD3303X & SPD3303X-E Series Programmable Linear DC Power Supplies have a 4.3 inch TFT-LCD display, support Remote Programming and have Real Time Wave Displays. The SPD3000X Series has three isolated outputs; two adjustable channels and one selectable channel from 2.5 V, 3.3 V, and 5 V. It also has output short and overload protection and can be used in production and development.
