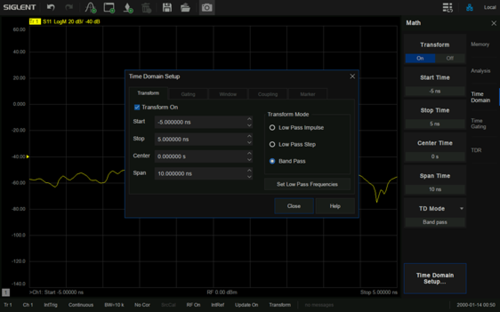

Siglent SNA5000-TDA Time Domain Analysis (SW)
Basic Time Domain Reflectometer activation license for the SNA5000A series of VNAs
Measured frequency responses can be transformed to the time domain to analyze the time-domain characteristics of the DUT.
| Enhanced Time Domain Reflectometer (SNA5000-TDR) | Basic Time Domain Reflectometer (SNA5000-TDA) | |
|---|---|---|
| Similarities | 1. Time-domain responses obtained by IFFT on frequency-domain data.
2. Includes gating and de-embedding | |
| Differences | TDR simulates the setup of a traditional time domain reflectometer | N/A |
| Includes time domain low-pass step and pulse response for reflection and transmission | Includes time domain low-pass step and pulse response as well as bandpass response for reflection and transmission | |
| The rise time of the step signal and the width of the pulse signal can be set | N/A | |
| Supports eye diagram transmission testing | N/A | |
