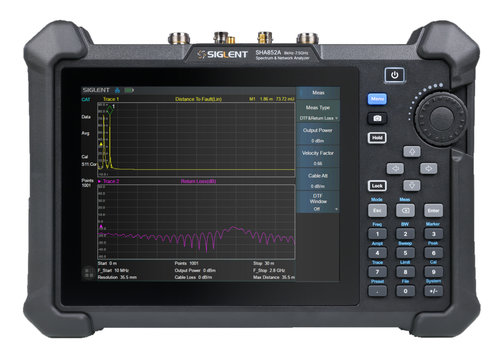

Siglent SG-SHA851A Handheld Spectrum / Vector Network Analyzer 9 kHz-3.6 GHz
Key Features and Functions
- Spectrum Analyzer Frequency Range from 9 kHz up to 3.6 GHz GHz
- Cable and Antenna Test Frequency Range from 100 kHz up to 3.6 GHz, Distance To Fault and Time Domain Analysis
- Vector Network Analyzer (Option) Frequency Range from 100 kHz up to 3.6 GHz
- Bias out up to 32VDC (Option)
- Displayed Average Noise Level (Typ.) -165 dBm/Hz
- SSB Phase Noise (Typ.) -104 dBc/Hz@1 GHz,10 kHz offset
- Full bandwidth source (Option) and standard preamplifier
- Analog and Digital Signal Modulation Analysis Mode (Option)
- Advanced Measurement Kit with Waterfall chart (Option)
- GPS Receiver and GPS Logging (Option)
- Typical working time 4 hours
- Weight 3.2 kg net
- 8.4 lnch Multi-Touch Screen
Interfaces and protocols:
- USB Host: USB-A plug, version 2.0
- Ear Phone Jack: 3.5 mm
- USB Device: USB-C plug, version 2.0
- LAN (VXI 11), 10/100 Base, RJ-45
- GPS Antenna: (SHA850-GPS) SMA(F), 3.3 V, 50 Ω
- Bias out: (SHA850-BIAS): SMB(F), 12 V-32 V, 0.1 V step
Documents and Software Solutions:
Product Overview
SIGLENT SHA850A, a handheld portable spectrum analyzer and cable-and-antenna analyzer, is a powerful and flexible tool for those field and outdoor RF applications.
With a frequency range up to 7.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation. A spectrum analyzer, including built-in amplifier and independent signal source, fast scanning speed, high sensitivity, can achieve broadcast monitoring, channel power scanning, wireless interference location, power monitoring, electromagnetic compatibility, and other functions. A cable and antenna tester including built-in DC voltage bias, with a 1-path-2-port vector network analysis function, can measure TDR, VSWR, port matching debugging, insertion loss measurement, tower amplifier debugging, cable fault location, Smith chart, etc.
Product Overview
SIGLENT SHA850A, a handheld portable spectrum analyzer and cable-and-antenna analyzer, is a powerful and flexible tool for those field and outdoor RF applications.
With a frequency range up to 7.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation. A spectrum analyzer, including built-in amplifier and independent signal source, fast scanning speed, high sensitivity, can achieve broadcast monitoring, channel power scanning, wireless interference location, power monitoring, electromagnetic compatibility, and other functions. A cable and antenna tester including built-in DC voltage bias, with a 1-path-2-port vector network analysis function, can measure TDR, VSWR, port matching debugging, insertion loss measurement, tower amplifier debugging, cable fault location, Smith chart, etc.
