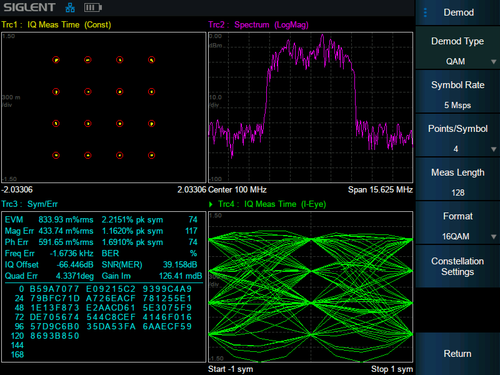

Siglent SG-SHA850-DMA Digital Modulation Analysis (software license)

Product Overview

Digital Modulation Analysis (software license)

• Modulation Type
• ASK: 2ASK;
• FSK: 2FSK, 4FSK, 8FSK, 16FSK
• MSK: GMSK
• PSK: BPSK, QPSK, OQPSK, 8PSK;
• DPSK: DBPSK, DQPSK, D8PSK, π/4 -DQPSK, π/8 -D8PSK
• QAM: 16, 32, 64, 128, 256
• Meas/Ref Filter
• Nyquist, Squrt Nyquist, Gauss, Half Sine, Rectangular
• Trace Data
• IQ Meas Time, IQ Meas Spectrum, IQ Ref Time, IQ Ref Spectrum,
• Time, Spectrum, IQ Mag Err, IQ Phase Err
• Trace Formats
• Log mag, Lin mag, Real, Imag, I-Q, Constellation, I-eye, Q-eye
• Wrap Phase, Unwrap Phase, Trellis eye
