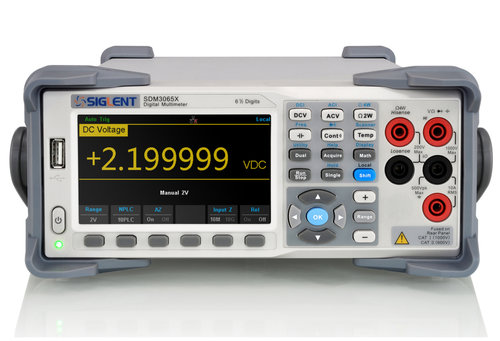

Siglent SDM3065X 6½ Digits Dual-Display Digital Multimeters
Key Features and Functions
- Real 6½ digits readings resolution (2,200,000 counts)
- Range:
- DC Voltage: 200 mV-1000 V
- AC Voltage: 200 mV-750 V
- Current: 200 µA-10 A
- Basic accuracy: 0.0035% of reading + 0.0006% of range
- 1 Gb Nand flash size, Mass storage configuration files and data files
- True-RMS AC Voltage and AC Current measuring
- Supports double display, Chinese and English Menu
- Built-in cold terminal compensation for thermocouple
- Comes with easy, convenient and flexible any sensor measurement control software: EasyDMM
- Math Function: Max, Min, Average, Standard Deviation, dBm/dB, Relative Measurement, Pass/Fail Histogram, Trend Chart, Bar Meter, etc.
- Support for SC1016 Scanner Card (Included in SDM3055-SC)
Interfaces and protocols:
- USB Host, LAN (Optional Accessories USB-GPIB Adapter)
- File management (support for U-disc and local storage)
Documents and Software Solutions:
Product Overview
The SDM3065X / SDM3065X-SC is a 6 ½ digit DMM(digital multimeter with 2,200,000 counts) incorporating a dual –display. The SDM3065X series is especially well-suited for the needs of high-accuracy and high-precision applications measurement.
Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Description
Reviews
Query on the Item
Product Overview
The SDM3065X / SDM3065X-SC is a 6 ½ digit DMM(digital multimeter with 2,200,000 counts) incorporating a dual –display. The SDM3065X series is especially well-suited for the needs of high-accuracy and high-precision applications measurement.
