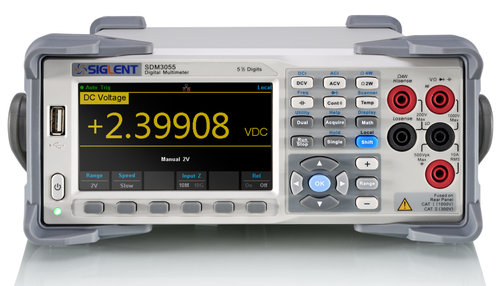

Siglent SDM3055 5½ Digits Dual-Display Digital Multimeters
Key Features and Functions
- Real 5½ digits readings resolution (240, 000 counts)
- Range:
- DC Voltage: 200 mV-1000 V
- AC Voltage: 200 mV-750 V
- Current: 200 µA-10 A
- Basic accuracy: 0.015% of reading + 0.003% of range
- Up to 150 rdgs/s measurement speed
- True-RMS AC Voltage and AC Current measuring
- 1 Gb Nand flash size, Mass storage configuration files and data files
- Built-in cold terminal compensation for thermocouple temperature measurements
- With easy, convenient, and flexible PC software: EasyDMM
- Support for SC1016 Scanner Card (Included in SDM3055-SC)
Interfaces and protocols:
- USB Host, LAN (Optional Accessories USB-GPIB Adapter)
- USB & LAN remote interfaces support common SCPI command set. Compatible with other popular DMMs on the market.
Documents and Software Solutions:
Product Overview
The SDM3055 / SDM3055-SC is a digital multimeter designed with 5 ½ digits readings resolution and dual-display, especially ftting to the needs of high-precision, multifunction and automatic measurement.
