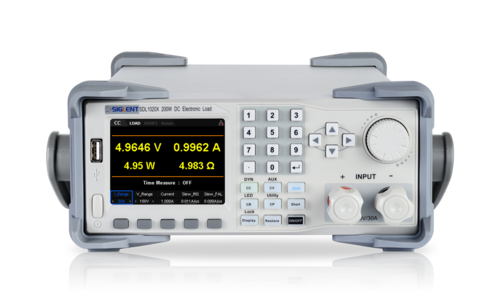

Siglent SDL1020X Programmable DC Electronic Loads, 150 V/30 A 200 W
Key Features and Functions
- SDL1020X (Single channel): DC 150 V/30 A, total power up to 200 W
- SDL1030X (Single channel): DC 150 V/30 A, total power up to 300 W
- 4 static modes / Dynamic mode: CC/CV/CR/CP
- Min. readback resolution: 0.1 mV, 0.1 mA
- Adjustable current rise time range: 0.001 A/us to 2.5 A/us
- SDL1020X (Single channel ): DC 150 V/30 A, total power up to 200 W
- SDL1030X (Single channel ): DC 150 V/30 A, total power up to 300 W
- 4 static modes / Dynamic mode: CC/CV/CR/CP
- CC Dynamic mode: Continuous, pulsed, toggled
- CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz, CV Dynamic mode: 0.5 Hz
- Measuring speed of voltage and current: up to 500 kHz
- Adjustable current rise time range: 0.001 A/us~2.5 A/us
- Min. readback resolution: 0.1 mV, 0.1 mA
- Short-circuit, Battery test, CR-LED mode, and factory test functions
- 4-wire SENSE compensation mode function
- List function supports editing as many as 100 steps
- Program function supports 50 groups of steps
- OCP, OVP, OPP, OTP and LRV protection
- External analog control
- Voltage, Current monitoring via 0-10 V
- 3.5 inch TFT-LCD display, capable of displaying multiple parameters and states simultaneously
- Waveform trend chart and easy-to-use file storage and call functions
Interfaces and protocols:
- Built-in RS232/USB/LAN communication interface, USB-GPIB module (optional)
- Includes PC software: Supports SCPI, LabView driver
Documents and Software Solutions:
Product Overview
SDL1000X/SDL1000X-E series Programmable DC Electronic Loads have a 3.5 inch TFT-LCD display, a user-friendly interface and superb performance specifications. SDL1020X/SDL1020X-E DC Electronic Loads feature an input range of 150 V/30 A 200 W while the SDL1030X/SDL1030X-E have an input range of 150 V/30 A 300 W. The SDL1000X series leads with measurement resolution of 0.1 mV/0.1 mA and the base SDL1000X-E series resolution is 1 mV/1 mA and adjustable current rise times from 0.001 A/μs~2.5 A/μs. For remote communication and control, the SDL series includes RS232/USB/LAN interface types. SDL1000X electronic loads deliver stability over a wide range of applications and can meet all kinds of testing requirements, including: Power, battery/handheld device design, industry, LED lighting, automotive electronics.
Product Overview
SDL1000X/SDL1000X-E series Programmable DC Electronic Loads have a 3.5 inch TFT-LCD display, a user-friendly interface and superb performance specifications. SDL1020X/SDL1020X-E DC Electronic Loads feature an input range of 150 V/30 A 200 W while the SDL1030X/SDL1030X-E have an input range of 150 V/30 A 300 W. The SDL1000X series leads with measurement resolution of 0.1 mV/0.1 mA and the base SDL1000X-E series resolution is 1 mV/1 mA and adjustable current rise times from 0.001 A/μs~2.5 A/μs. For remote communication and control, the SDL series includes RS232/USB/LAN interface types. SDL1000X electronic loads deliver stability over a wide range of applications and can meet all kinds of testing requirements, including: Power, battery/handheld device design, industry, LED lighting, automotive electronics.
