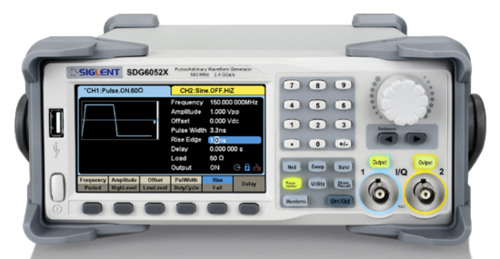

Siglent SDG6032X Series Pulse/Arbitrary Waveform Generator 350 MHz, 2 channels, 2.4 GSa/s, 16 bit

Key Features and Functions

• Dual-Channel, 500 MHz maximum bandwidth, 20 Vpp maximum output amplitude, high fidelity output with 80 dB dynamic range
• High-performance sampling system with 2.4 GSa/s sampling rate and 16-bit vertical resolution
• EasyPulse circuit lowers jitter and increases pulsed performance
• Create baseband and IF IQ modulated waveforms (optional)
• Sweep and Burst function
• Harmonics function
• Waveform Combining function
• Channel Coupling, Copy and Tracking function
• 196 built-in arbitrary waveforms
• High precision Frequency Counter
• Base Band and IF IQ signals supporting basic modulation and an arbitrary symbol rate between 250 Symb/s to 37.5 MSymb/s (optional)
• 4.3” touchscreen display for easier operation

Interfaces and protocols:

• USB Host, USB Device (USBTMC), LAN (VXI-11, Socket, Telnet). GPIB Optional (Part number USB-GPIB)
