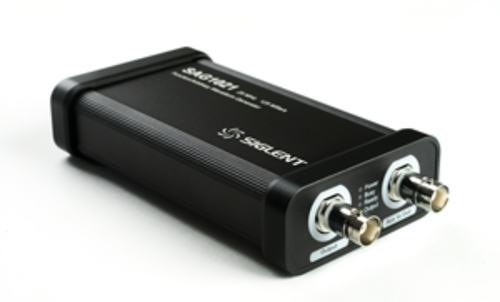

Siglent SAG1021I Isolated USB function/arbitrary waveform generator
SAG1021I Isolated USB function/arbitrary waveform generator
Accessory for use with the four-channel SDS 800X HD, SDS1000X HD, SDS1000X-E, SDS2000X-E, SDS3000X HD, SDS5000X, and SDS6000A oscilloscopes. Output Sine, Square, Ramp, Pulse, Noise, DC and 45 built-in waveforms. The arbitrary waveforms can be accessed and edited by the EasyWave PC software.
Requires the correct Function Generator Activation License for the specific oscilloscope (part number ends with -FG)
- Outputs: 1
- Max. Output Frequency: 25 MHz
- Sampling Rate: 125 MSa/s
- Frequency Resolution: 1 μHz
- Frequency Accuracy: ±50 ppm
- Vertical Resolution: 14-bit
- Amplitude Range: 1.5 ~ +1.5 V (50Ω load), -3 ~ +3 V (High-Z load)
- Waveform Types: Sine, Square, Ramp, Pulse, Noise, DC and 45 built-in waveforms
- Output impedance: 50 Ω±2%
- Protection: Over-Voltage Protection, Current-Limiting Protection
- Insulation Voltage: ±42 Vpk (for SAG2021I only)
