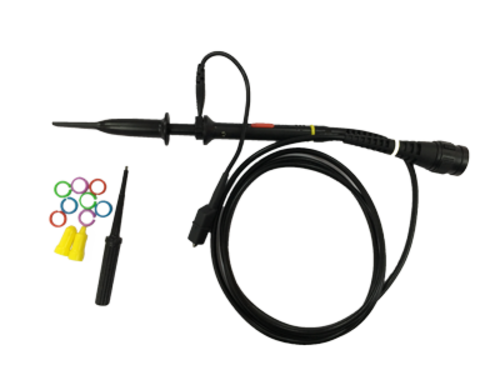

Siglent PP215 Passive Probe 1X/10X attenuation, 85/16pf, 1M/10 Mohm, 6M/200 MHz, 300V/600V

Technical Data:

• Attenuation Rate: 1X/10X
• Bandwidth 10X: DC-200 MHz
• Input Impedance: 1 MΩ/10 MΩ
• Input Capacitance: 10X: 13 pF-17pF
• Compensation Range: 10 pF-35 pF
• Input Voltage:
• 1X: 150 V RMS CAT II
• 10X: 300 V RMS CAT II
• Operation Temp: -10 ? ~ 55 ?
• Cable Length: 130 cm
• Weight: 55 g
