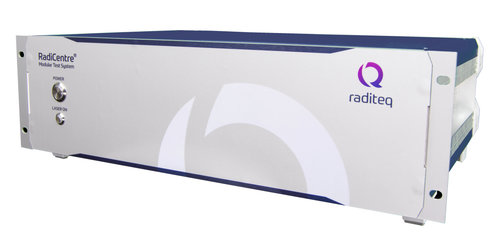

Raditeq CTR2008A RadiCentre Ultra 8-Slot modular Test System
The RadiCentre® Ultra 8-Slot modular system
The need for efficient and accurate electromagnetic (EM) testing has never been greater, and the development of innovative technologies like the RadiCentre® Ultra has revolutionized the way testing is conducted. This advanced device is designed to combine up to 8 different devices or 8 of the same device, such as the RadiSense electric field probe, into a single unit, making it ideal for complex electromagnetic compatibility (EMC) testing and difficult coaxial switching applications. In this article, we will delve into the features and capabilities of the RadiCentre® Ultra, and explore its potential uses in the field of EM testing, with a particular focus on its ability to enhance the efficiency and accuracy of reverberation EMC testing. We will also examine how this advanced technology can help ensure regulatory compliance and improve the safety and reliability of modern devices and communication systems.
RadiCentre® 8 Modular Multifunctional Test System
CTR2008A is the latest addition to the RadiCentre® modular test systems. This new system rack is intended for applications where high speed data transfer is required and supports up to 8 instruments in one rack.
Like previous test systems, this latest model supports all available instruments from Raditeq, including: signal generators, power meters, coaxial switch cards and E-field probes. When configured with eight RadiSense laser-powered E-field probes, the CTR2008A is ideal for high speed chamber calibrations and radiated immunity testing.
Typical applications:
The international standard ISO11451-5: “vehicle test methods for reverberation rooms”, defines the measurement and calibration of E-fields at eight reference points in the reverberation room. The new RadiCentre® model CTR2008A is ideally suited to perform these measurements with the highest speed and accuracy.
The EN-IEC61000-4-3 standard requires a 16 point calibration to verify the field homogeneity in the anechoic chamber. When using one or even two CTR2008A modular system racks, each equipped with 8 E-field probes, these tests can be performed in a split second!
Fast measurements:
The RadiCentre® model CTR2008A is equipped with a 1 Gigabit Ethernet interface. Each instrument installed in one of the eight slots has its own assigned IP address.
This allows for direct communication with each individual device thus enabling fast data throughput and easy installation
