Keysight PP0004A Adapter for PP000xA, Hi-Z+ Passive Probes
Key Features and Functions
PP0001/2/3A all require the use of PP0004A in order to leverage the AutoProbe I interface on applicable InfiniiVision X Series and Infiniium oscilloscopes. In the future, this adapter will be designed into the oscilloscope, but for now, ensure you have a PP0004A adapter for every probe you need in your test setup.

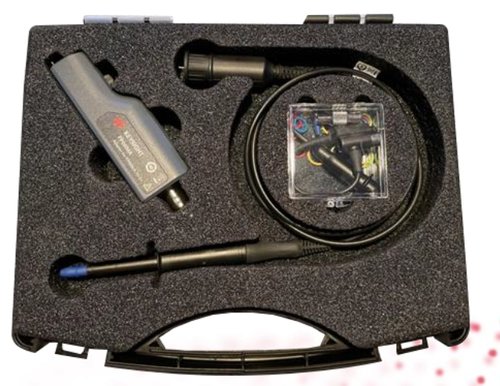

PP0004A ships in a convenient padded storage case, with space for an accompanying probe and accessories. Pictured here is the PP0004A in its case with a PP0001A.
Manuals:
With a small probe head, rugged and replaceable tips, automatic probe identification and attenuation, high voltage ranges and high input impedances with low capacitance – this family of probes is truly the best of passive probes and active probes in one. PP0001A provides a never-before-seen combination of high bandwidth and higher input voltages. PP0002A is the only 800 MHz passive probe to provide more than 1 kV of input voltage. PP0003A is our first ever MMCX compatible probe. All three are sold with a variety of accessories, an adapter for use with AutoProbe I, and optional accessory kits to round out your test setup.
With a small probe head, rugged and replaceable tips, automatic probe identification and attenuation, high voltage ranges and high input impedances with low capacitance – this family of probes is truly the best of passive probes and active probes in one. PP0001A provides a never-before-seen combination of high bandwidth and higher input voltages. PP0002A is the only 800 MHz passive probe to provide more than 1 kV of input voltage. PP0003A is our first ever MMCX compatible probe. All three are sold with a variety of accessories, an adapter for use with AutoProbe I, and optional accessory kits to round out your test setup.
