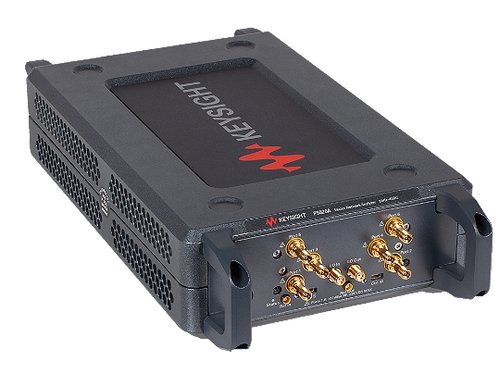

Keysight P5020A Vector network analyzer, 9 kHz to 4.5 GHz, 4 or 6-port
Consider the B-model unless you prefer USB-C connection: P5020B
Key Features
- Flexible, high-performance compact VNA
- Choose from a wide range of measurement applications to gain deeper insight into your RF test
- Features the same intuitive GUI as Keysight’s high-performance PNAs
- Calibrate quickly with support for all Keysight electronic calibration (ECal) modules
Options for:
- Basic Pulsed-RF measurements
- Automatic fixture removal
- Time domain analysis
- Noise figure measurements with vector correction
- Embedded LO capability
- Gain compression measurements
- Spectrum analysis
- Multiport calibrated measurements
Documents and Software Solutions:
Keysight P500xA and P502xA Streamline Series USB VNA.
The P50xxA Series, a member of Keysight’s Streamline Series offers the performance required for testing passive components, amplifiers, mixers or frequency converters. The vector network analyzer (VNA) provides best-in-class key specifications such as dynamic range, measurement speed, trace noise and temperature stability. Choose from 2- or 4-port models up to 53 GHz, or 2-, 4- or 6-port models up to 20 GHz. The VNA is packaged in a compact chassis and controlled by an external computer with powerful data processing capabilities and functionalities.
The P50xxA utilizes the same measurement science as other Keysight VNAs such as the PNA, ENA and PXI VNA. A common software platform makes it easy to choose the right level of performance to match budget and measurement needs. This commonality guarantees measurement consistency, repeatability, and a common remote-programming interface across multiple instruments in R&D and manufacturing.
Keysight P500xA and P502xA Streamline Series USB VNA.
The P50xxA Series, a member of Keysight’s Streamline Series offers the performance required for testing passive components, amplifiers, mixers or frequency converters. The vector network analyzer (VNA) provides best-in-class key specifications such as dynamic range, measurement speed, trace noise and temperature stability. Choose from 2- or 4-port models up to 53 GHz, or 2-, 4- or 6-port models up to 20 GHz. The VNA is packaged in a compact chassis and controlled by an external computer with powerful data processing capabilities and functionalities.
The P50xxA utilizes the same measurement science as other Keysight VNAs such as the PNA, ENA and PXI VNA. A common software platform makes it easy to choose the right level of performance to match budget and measurement needs. This commonality guarantees measurement consistency, repeatability, and a common remote-programming interface across multiple instruments in R&D and manufacturing.
