Keysight N9077EM1E WLAN 802.11ac/ax Measurement Application
Signal analysis
- 802.11a/g, 802.11b/g DSSS/CCK/PBCC, 802.11g DSSS-OFDM, 802.11n 20 MHz & 40 MHz signals (HT-Mixed, HT-Greenfield, Non-HT), 802.11af, 802.11ah, 802.11p with auto detection
- 802.11ac 20/40/80/160 MHz and 80+80 MHz signals to perform power, spectrum and modulation measurements
- 802.11ax single-user and multi-user PPDU spectrum and modulation measurement
- One-button measurements with pass/fail per the standard
Measurements
- Swept measurement with time-gated feature: channel power, SEM, OBW
- IQ measurements: power versus time, CCDF, spectrum flatness, modulation analysis and more

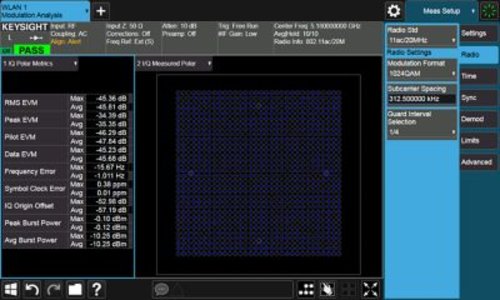

- Multiple result views: constellation diagram, EVM vs. symbol, EVM vs. subcarrier, and numeric results display for OFDM signal
- OFDM data burst information, HT-Sig information for 802.11n (MCS 0-7) and VHT-Sig information for 802.11ac (MCS 0-9), 802.11af, 802.11ah (MCS 0-10), and HE 802.11ax (MCS0-11)
Performance (hardware dependent)
- EVM floor: up to -53 dB (0.23%) (nominal)
- Absolute power: up to ± 0.19 dB (at 95th percentile)
- Analysis bandwidth: UXA up to 1 GHz; PXA up to 510 MHz; MXA up to 160 MHz; EXA up to 40 MHz; CXA up to 25 MHz
Other features
- For X-Series signal analyzers with multi-touch UI (N90x0B)
- License key upgradeable
- Fixed and transportable licenses available
- SCPI remote user interface
