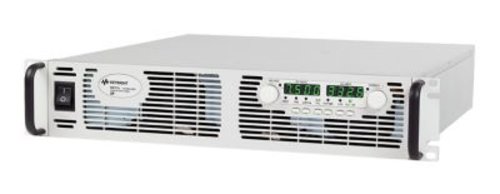

Keysight N8756A DC Power Supply 40 V, 125 A, 5000 W. GPIB, LAN, USB, LXI interface
Key Features
- Compact high-power density 2U package
- Low noise output as low as 8 mVrms
- Extensive device protection: overcurrent, overvoltage, and under-voltage
- Simple front panel operation — separate voltage and current knob
- Modern I/O: USB, LAN (LXI-Core), and GPIB
- Front to back airflow simplifies rack mounting
- Power supply overtemperature protection
- Connect up to 4 units in parallel for higher current
- Universal AC input: 85 to 265 Vac
DC Output Ratings
- Voltage: 40V
- Current: 125A
- Power: 5000W
Programming Accuracy
- Voltage: 0.025% + 30mV
- Current: 0.1% + 375mA
Output Ripple and Noise
- CV p-p: 75mV
- CV rms: 10mV
Documents and Software Solutions:
Family of Affordable Basic System DC Power Supplies
The N8700 series system DC power supplies give you just the right performance at just the right price in a compact (2 U) package. This family of affordable 3300 W and 5000 W single-output programmable DC power supplies consists of 21 models for simple DC power applications.
They provide stable output power, built-in voltage and current measurement, and output voltage and current from 8 V to 600 V and 5.5 A to 400 A.
These economical supplies offer many system-ready features like multiple standard I/O interfaces to simplify and accelerate test-system development for R&D, design validation, and manufacturing engineers in the aerospace/defense, automotive, component and communications industries.
Small, high-density package saves you rack space
The N8700 provides up to 5200 W in a small space-saving 2 U-high, 19-inch-wide package. Its air vents are in the front and rear (not on the top or bottom), so you can stack other instruments directly above or below it to save valuable rack space.
