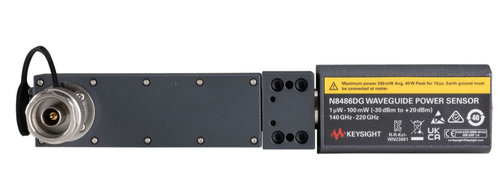

Keysight N8486DG 140 to 220 GHz Waveguide Power Sensor

Key Features and Functions

• Enables precise and direct waveguide measurements in the G-band frequency range using a WR-05 flange connector
• Covers an extensive frequency range from 140 to 220 GHz (G-band).
• Offers dynamic range from -30 to +20 dBm (Option 100 for continuous wave, CW and Average power measurements for 140 to 220 GHz).
• Provides wider dynamic range from -52 up to +10 dBm (Option 200). Measuring Average power from -52 to -10 dBm (140 to 220 GHz), and CW power from >-10 to +10 dBm (140 to 170 GHz) / >-10 to +5 dBm (>170 to 220 GHz).
• Compatibles with Keysight N1913 / 14A EPM-Series and N1913 / 14B EPM-Series Power Meters.
• Delivers a complete frequency and power coverage for source power calibration measurements up to 220 GHz.
• Supplies an extended dynamic range of -52 up to +10 dBm and a built-in erasable programmable read-only memory (EEPROM) that stores the calibration factors for Option 200.
