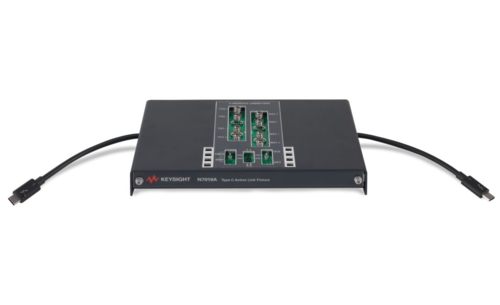

Keysight N7019AA USB Type-C® Active Link Fixture
Key Features & Specifications
- Provides access to all Type-C signals during an active link
- Signals include Vbus, USB 2.0, USB-PD, SBU1/2, and TX/RX up to maximum USB4 rate of 20 Gbps
- Works in conjunction with Keysight Protocol Trigger Decode solutions for USB-PD, USB 2.0, USB 3.2, and USB4
Description
Use the N7019A to access all your Type-C signals in a live link. The acquired signals can be used for debug or decoded with USB-PD, USB 2.0, USB 3.2, or USB4 Protocol Decode Software.
The Keysight Technologies, Inc. N7019A Type-C Active Link fixture provides a fast and easy access to test, debug and decode your Type-C active link. Used in conjunction with the Keysight Protocol and Decode SW, you can now access, debug, and decode Vbus, USB-PD, USB 2.0, USB 3.2, and USB4 SB, USB4 10G, and USB4 20G, on an active link.
Type-C Active Link Signal Access For a USB4 active link to function correctly, many different signals need to be transmitted and received on a live link – Vbus, USB-PD, SBUTX/RX, TX/RX. With the N7019A, you can access and view all Type-C signals and determine where in the link start-up an error occurred. Coupled with the Keysight suite of Protocol Trigger and Decode solutions, you can timecorrelate protocol errors with signal integrity issues in the time domain.
Depending on the Type-C signal being accessed, there are different ways to connect to the N7019A (Figure 1).
- Vbus: N7023A Power Rail probe browser.
- USB 2.0: N2871A probe or E2678B probe heads.
- USB4 10G/20G: N2823A phase-matched cables.
- SBU: N2871A probe or E2678B probe heads.
The Keysight Technologies, Inc. N7019A Type-C Active Link fixture provides a fast and easy access to test, debug and decode your Type-C active link. Used in conjunction with the Keysight Protocol and Decode SW, you can now access, debug, and decode Vbus, USB-PD, USB 2.0, USB 3.2, and USB4 SB, USB4 10G, and USB4 20G, on an active link.
Type-C Active Link Signal Access For a USB4 active link to function correctly, many different signals need to be transmitted and received on a live link – Vbus, USB-PD, SBUTX/RX, TX/RX. With the N7019A, you can access and view all Type-C signals and determine where in the link start-up an error occurred. Coupled with the Keysight suite of Protocol Trigger and Decode solutions, you can timecorrelate protocol errors with signal integrity issues in the time domain.
Depending on the Type-C signal being accessed, there are different ways to connect to the N7019A (Figure 1).
- Vbus: N7023A Power Rail probe browser.
- USB 2.0: N2871A probe or E2678B probe heads.
- USB4 10G/20G: N2823A phase-matched cables.
- SBU: N2871A probe or E2678B probe heads.
