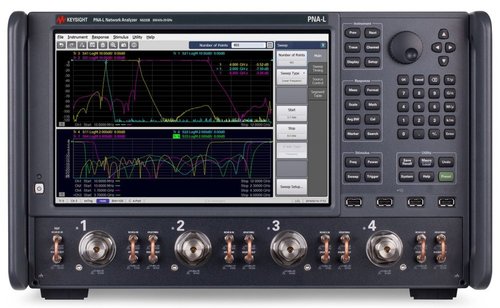

Keysight N5232B 300 kHz to 20 GHz PNA-L network analyzer
Key Features
- Perform basic analysis of passive components and simple active devices
- Measure S-parameters with good accuracy up to 13.5 GHz in cost-sensitive applications
- Get the world’s best price-to-performance ratio for microwave manufacturing
- Configure an economical solution for signal-integrity measurements and materials characterization
- Accelerate insight into component behavior using a multi-touch display and intuitive user interface
Documents and Software Solutions:
PNA-L: Passive and Active Device Test at Affordable Prices
The Keysight PNA-L is designed for your general-purpose network analysis needs and priced for your budget. With the same core firmware as the PNA, the PNA-L offers the perfect balance of value and performance. The PNA-L provides efficiency and flexibility in both manufacturing and R&D applications, for industries ranging from mobile-telecomm and wireless-LAN component production to aerospace and defense.
Balanced/differential components
For passive devices that have one or more balanced/differential ports, the PNA-L is an excellent choice for mixed-mode S-parameter measurements, without the need or limitations of using baluns.
- Display differential-, common-, and mixed-mode performance, in a variety of trace formats
- Measurement parameters include common-mode-rejection ratio and amplitude and phase imbalance
- Supported port configurations include single-ended-to-balanced and balanced-to-balanced topologies
