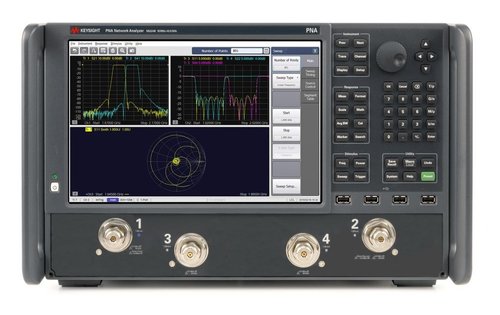

Keysight N5224B 10 MHz to 43.5 GHz PNA network analyzer
Key Features
- Meet your toughest measurement challenges with the highest performing microwave network analyzer in the industry
- Measure S-parameters with the smallest uncertainty and highest stability
- Efficiently characterize active components with applications that simplify setups
- Meet your specific budget and measurement needs by customizing to just the right level of performance
- Accelerate insight into component behavior using a multi-touch display and intuitive user interface
Key performance data
- High source output power of +13 dBm at 1 GHz to +11 dBm at 67 GHz
- High dynamic range: 134 dB at 20 GHz at test port
- Low trace noise: 0.002 dB rms at 1 kHz bandwidth
- Low receiver noise floor
- High receiver compression level
- Fast measurement speed: 3.6 to 23 μsec/point
- High stability: < 0.03 dB/°C
Documents and Software Solutions:
PNA Series
The PNA Series of network analyzers offers industry-leading performance for testing amplifiers, mixers and frequency converters.
The PNA Series provides a winning combination of excellent hardware and powerful measurement applications to measure a broad range of devices fast and accurately. All models are available in 2-port single-source and 4-port dual-source versions. Pulsed S-parameters are easy using built-in pulse modulators and pulse generators.
Advanced applications
Many of the measurement applications developed for the PNA-X are now available for the PNA, such as:
- Device Measurement eXpert (DMX) (S94601B/S94602B)
- Real-time S-parameter and power measurement uncertainty (S93015B)
- Pulsed-RF (S93025/26B)
- Gain compression (S93086B)
- Intermodulation distortion (S93087B)
- Noise figure using standard receivers (S93029B)
- Source-phase control (S93088B)
- Differential and I/Q Devices (S93089B)
- True-mode stimulus (S93460B)
- Frequency converters (S93082/83B)
- Embedded-LO (S93084B)
- Automatic fixture removal (S93007B)
- Spectrum analysis (S9309xxB)
