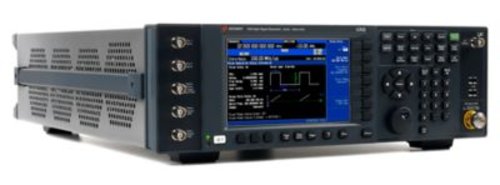

Keysight N5193A UXG Agile Signal Generator
Key features
- Get closer to reality: simulate increasingly complex signal environments for radar, EW & antenna-test
- Test sooner & increase confidence in EW systems by generating signal simulations when you need them: the UXG is a scalable threat simulator
- Use pulse descriptor words (PDWs) to generate long pulse trains & individually control pulse characteristics
- Accurately simulate multi-threat environments: 180-ns PDW update rate, chirps 10 to 25% of carrier frequency, pulses as narrow as 10 ns
Key specifications
- 10 MHz to 40 GHz frequency range
- 180 ns frequency, amplitude, and phase update rate
- 10 ns minimum pulse width
- 90 dB pulse on/off ratio
- Linear chirp width 10 to 25% of carrier frequency
Additional Documents:
Availability:
Call or email for delivery time
- 10 kHz frequency resolution
- 100 μs switching speed
- Amplitude range of +10 to -10 dBm
- Standard phase noise of -117 dBc/Hz (typ) at 20 kHz offset for a 10 GHz carrier frequency
- 3.5 mm (f) to 3.5 mm (f) connector adapter (20 GHz model only)
- 2.4 mm (f) to 2.4 mm (f) and 2.4 mm (f) to 2.9 mm (f) connector adapters (40 GHz model only)
- Country-specific power cord
- Documentation set (CD-ROM)
- One day of on-site startup assistance?
