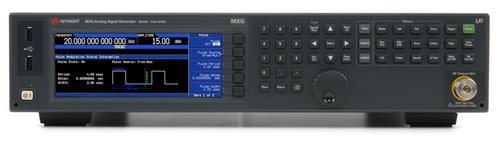

Keysight N5183B MXG X-Series Microwave Analog Signal Generator
Key features
- Get a fast, compact (2U) alternative to the PSG in the lab, depot or field
- Address demanding tests of radar modules & systems with near-PSG levels of spectral purity
- Compensate for system loss & drive high-power amplifiers: +19 dBm output power, -55 dBc harmonics & -68 dBc spurious @ 20 GHz
- Reduce calibration time with switching speed 600 µs
- Simulate narrowband chirps & radar antenna scans with up to five internal function generators that can be used with AM, FM, OM pulse modulation
Key specifications
- Frequency range (min. to max.): 9 kHz to 40 GHz
- Frequency switching (list mode): 600 μs
- Sweep mode: Step, list
- Output power (at 20 GHz): –135 to +20 dBm
- Level accuracy (at 20 GHz): ± 0.7 dB
- SSB phase noise (at 10 GHz; 10 kHz offset): –124 dBc/Hz
- Harmonics (at 10 GHz): -55 dBc
- Non-harmonics (at 1 GHz): –100 dBc
- AM rate: DC to 100 kHz
- FM deviation (maximum): 1 to 128 MHz
- PM phase deviation (maximum in normal mode): 0.5 to 64 rad
- Narrow pulse width: 20 ns
Additional Documents:
Generate Trusted Performance
When you describe the demands on your newest programs, the urgency is clear—that’s what keeps Keysight Technologies, Inc. innovating in microwave signal generators. Our foundation is the PSG, with its metrology-grade performance and versatile capabilities. Complementing the PSG, the MXG and EXG offer alternatives in size, speed, and cost.
As you pursue mission success, Keysight can help you generate trusted performance. Our microwave signal generators are an essential part of today’s most advanced measurement systems. They reliably provide the signal purity, output power, and modulation you need to keep pushing the envelope.
- Drive advanced designs forward with the high output power and extremely low phase noise of the E8267D and E8257D PSG
- Get the right mix of speed, performance, and size with the pure and precise N5183B MXG
- Balance performance needs and budget realities with the cost-effective N5173B EXG
- Lower your cost-of-ownership with signal generators that deliver proven reliability and support for cost-effective calibration, service, and repair
