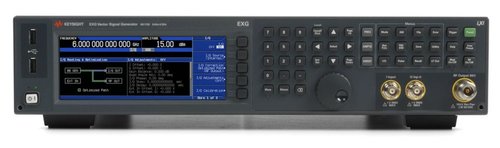

Keysight N5172B EXG X-Series RF Vector Signal Generator
Key features
- Achieve faster throughput and greater uptime with cost-effective performance optimized for manufacturing test
- Perform basic parametric testing of components and functional verification of receivers with industry-leading ACPR, EVM, and output power
- Reduce the time you spend on signal creation with Signal Studio software; purchase only the waveforms you need with 5- and 50-pack licensing
- Minimize downtime and expenses with self-maintenance solutions and low-cost repairs
Key specifications
- Frequency ranges: 9 kHz to 6 GHz
- Phase noise at 1 GHz, 20 kHz offset: –122 dBc/Hz
- Spurious at 1 GHz (nonharmonics) : –72 dBc
- Output power at 1 GHz: +27 dBm
- ACPR (vector) W-CDMA 64 DPCH: –73 dBc
- EVM (vector) 802.11ac/LTE: 0.4 percent
- Bandwidth (vector): 160 MHz
- Arbitrary waveform memory (vector): 512 MSa
Additional Documents and Software:
Generate True Performance
To know your device’s behavior, you’ll take many paths. That’s the idea behind the Keysight Technologies. Inc. X-Series signal generators. They produce the signals you need—from simple to complex, from clean to dirty—to test your design within and beyond its limits.
The X-Series is crafted to create signals capable of testing your very best devices. From the pure and precise MXG to the cost-effective EXG and general-purpose CXG, the X-Series helps you generate true performance.
To help you quickly create signals that meet the needs of specific standards and measurements, the X-Series signal generators are compatible with Keysight PathWave Signal Generation software. Its suite of signal-creation tools addresses cellular communications, wireless connectivity, audio, video, positioning, tracking, and generalpurpose applications.
To reduce cost of ownership, the X-Series signal generators are designed for high reliability and fast, easy calibration, service, and repair. Today’s X-Series signal generators leverage technology used in previous-generation MXG signal generators, which are among the most reliable signal sources ever offered by Keysigh
