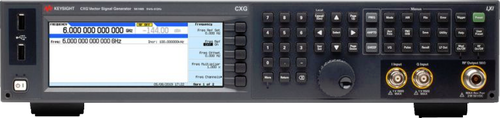

Keysight N5166B CXG RF Vector Signal Generator, 9 kHz - 3/6 GHz
Key features
- Continuous wave output, in Sine or Square
- Step and list swept output
- AM, FM, ΦM, and pulse modulations
- Internal baseband generator up to 120 MHz or external IQ input
- Multi-function generator (LF) Up to 7 utilities, maximum 10 MHz
- Signal Studio waveform playback via 5-pack or 50-pack license on CXG
Key specifications
- Frequency range: 9 kHz – 3/6 GHz
- Specified output power range: -110 to +18 dBm
- Switching speed: 5 ms
- Phase noise (1 GHz, 20 kHz offset): -119 dBc/Hz typical
- Amplitude accuracy: ±0.6 dB
- Internal baseband RF bandwidth: 60 or 120 MHz
- External IQ inputs RF bandwidth: 200 MHz
- Baseband amplitude flatness: ±0.2 dB, measured with channel correction
- Baseband memory: 32 MSa (standard), 512 MSa optional
- External IQ RF BW: 200 MHz
Additional Documents and Software:
Accurately measure any digitally modulated signal with Keysight N5166B X-Series CXG RF vector signal generator.
This RF vector signal generator model covers a frequency range of 9 kHz – 3/6 GHz.
With a waveform playback memory of 512 Msa the CXG can provide a few seconds and as much hours of a continuous signal without repeating, depending on sample rate.
The CXG helps characterize IoT and general-purpose devices by performing basic parametric testing of components and functional verification of receivers with great EVM to verify your component in a wireless communication system operates as expected. The CXG signal generator enables you to cover your consumer wireless application testing needs including, but not limited to: Bluetooth 5, V2X, Wi-Fi, NFC, NB-IoT, LoRa, ZigBee, and various other waveforms for playback. Furthermore, accelerate your product development cycle and gain greater confidence in design characterization using Signal Studio software.
Use multiple verified, standards-compliant vector signals to speed signal creation, reduce simulation time, and ensure you are testing with the latest standards while reducing the time spent on signal creation. Reduce total cost of ownership by purchasing only the waveforms you need with 5-Pack and 50-Pack waveform licensing in Signal Studio that comes with a 48-hour free trial period. Finally minimize downtime and expenses with self-maintenance solutions and low-cost repairs.
Accurately measure any digitally modulated signal with Keysight N5166B X-Series CXG RF vector signal generator.
This RF vector signal generator model covers a frequency range of 9 kHz – 3/6 GHz.
With a waveform playback memory of 512 Msa the CXG can provide a few seconds and as much hours of a continuous signal without repeating, depending on sample rate.
The CXG helps characterize IoT and general-purpose devices by performing basic parametric testing of components and functional verification of receivers with great EVM to verify your component in a wireless communication system operates as expected. The CXG signal generator enables you to cover your consumer wireless application testing needs including, but not limited to: Bluetooth 5, V2X, Wi-Fi, NFC, NB-IoT, LoRa, ZigBee, and various other waveforms for playback. Furthermore, accelerate your product development cycle and gain greater confidence in design characterization using Signal Studio software.
Use multiple verified, standards-compliant vector signals to speed signal creation, reduce simulation time, and ensure you are testing with the latest standards while reducing the time spent on signal creation. Reduce total cost of ownership by purchasing only the waveforms you need with 5-Pack and 50-Pack waveform licensing in Signal Studio that comes with a 48-hour free trial period. Finally minimize downtime and expenses with self-maintenance solutions and low-cost repairs.
