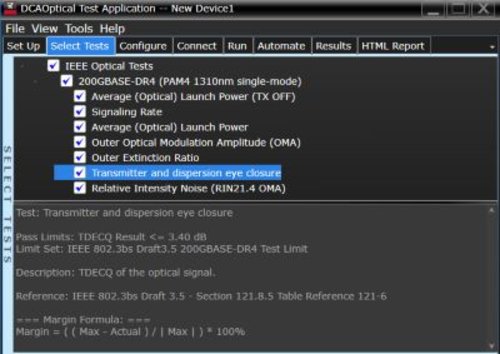

Keysight N1095BSCA Optical TX Test SW for IEEE 802.3bs/cd
Key Features
Comprehensive measurement and debug solution
- Characterizes 200/400 Gb/s Optical TX designs defined by IEEE 802.3bs
- Characterizes 50/100/200 Gb/s Optical TX designs defined by IEEE 802.3cd
- Key measurements include TDECQ, Optical Modulation Amplitude (Outer OMA), and Extinction Ratio (Outer ER)
Flexible and extensible
- Run from a PC connected to an N109x DCA-M via USB
- Automatic HTML report generation
- Test all or selected parameters to compliance limits or custom limits
Compatibility
- N1092X DCA-M Oscilloscope
- N1077A Clock Recovery (Single-mode and Multimode)
- N1078A Clock Recovery (Single-mode only)
Addtional documents and Software Solutions:
The Keysight N1095BSCA Optical TX test application can be used with the N1092 DCA-M Series oscilloscopes to quickly and accurately perform optical TX PAM4 measurements according to:
-
IEEE 802.3bs 200 Gb/s and 400 Gb/s Optical TX (Sections 121, 122, 123, 124)
- 200GBASE-LR4
- 200GBASE-FR4
- 200GBASE-DR4
- 400GBASE-LR8
- 400GBASE-FR8
- 400GBASE-DR4
- 400GBASE-SR16
-
IEEE 802.3cd 50 Gb/s, 100 Gb/s, and 200 Gb/s Optical TX (Sections 138, 139, 140)
- 50GBASE-SR
- 50GBASE-FR
- 50GBASE-LR
- 100GBASE-SR2
- 100GBASE-DR
- 200GBASE-SR4
The N1095BSCA is an easy-to-use optical TX test application that:
- Saves time in understanding details of standards
- Reduces the time it takes to characterize your optical PAM4 design
- Helps debug your device using custom configurations
- Allows you to quickly generate HTML reports that summarize the performance of your device
Key measurements include:
- Transmitter and Dispersion Eye Closure (TDECQ)
- Outer Optical Modulation Amplitude (Outer OMA)
- Outer Extinction Ratio (Outer ER)
- Average Optical Laun ch Power
- Signaling Rate
- Launch Power in OMAouter minus TDECQ
- Transmitter Transition Time
- Relative Intensity Noise (RINxx OMA) – FYI only
For a comprehensive and up-to-date list of specific tests covered by the application, download and install the N1095BSCA.exe onto a PC (click the Trials and Licenses tab), and run the application in “Demo Mode”. No license (or hardware) is required to run the software application in “Demo Mode”.
