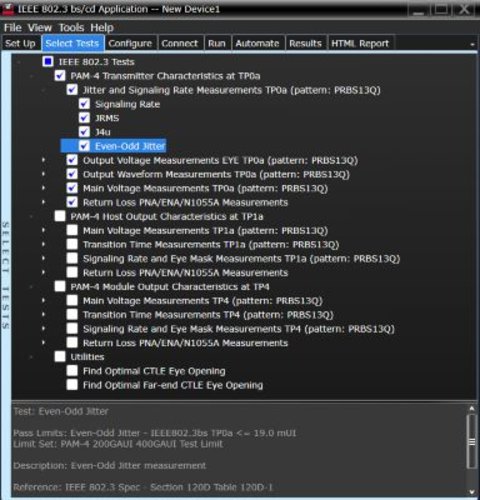

Keysight N1091BSCB Electrical TX Test SW for IEEE 802.3bs/cd
Key Features
Comprehensive measurement and debug solution
- Characterizes 200/400 Gb/s TX designs defined by IEEE 802.3bs
- Characterizes 50/100/200 Gb/s TX designs defined by IEEE 802.3cd
- Performs nearly 300 tests
- Key measurements include 12-edge Output Jitter (Jnu, JRMS, EOJ), SNDR, SNR_ISI, eye-opening (EW5, EH5), and return loss
Flexible and extensible
- Operate on an N1000A/86100D DCA-X oscilloscope, or on a PC connected to an N109x DCA-M via USB
- Automatic HTML report generation
- Test all or selected parameters to compliance limits or custom limits
Compatibility
- N1000A DCA-X Mainframe
- 86100D DCA-X Mainframe
- N109X DCA-M Oscilloscope
- N107X Clock Recovery
Addtional documents and Software Solutions:
Availability:
Call or email for delivery time
- 120 dB agile amplitude range
- Baseband generator with 250 MSa/rate (200 MHz BW) and 512 MSa memory
- < 500 ns typical update rate
- 3.5 mm (f) to 3.5 mm (f) connector adapter
- Country-specific power cord
- Documentation set (CD-ROM)
- One day of on-site startup assistance
