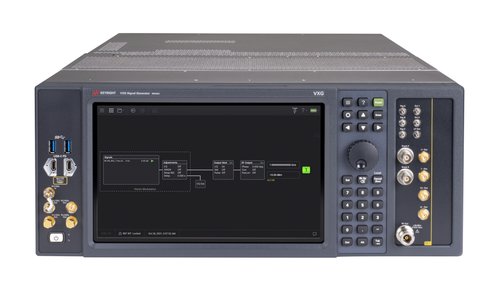

Keysight M9484C VXG Vector Signal Generator, 9 kHz to 54 GHz
Key Features
- Supports MIMO real-time fading for all 3GPP 5G NR base station conformance tests with PathWave Signal Generation software
- Covers all 5G NR frequency bands and V- / W-band for satellite communications
- Generates complex wideband signals needed for carrier aggregation and digital pre-distortion (DPD) applications
- Delivers superior RF performance for accurately characterizing devices under test, such as phase noise, error vector magnitude (EVM), and adjacent channel power ratio (ACPR)
- Simplifies MIMO and beamforming test setups with up to 4 synchronized and phase-coherent channels in one instrument and more than 32 channels in multiple instruments
- Streamlines complex receiver test scenarios with the world’s first 8-virtual-signal emulation per RF channel
Key performance data
- RF channels per box: 1, 2, or 4
- Frequency range: 9 kHz to 54 GHz (110 GHz with extender)
- Modulation bandwidth: 2.5 GHz (5 GHz)
- Output power at 10 GHz: +23 dBm
- Phase noise at 10 GHz, 10 kHz offset: -132 dBc/Hz
- EVM (5G, 100 MHz, 28 GHz): 0.35% (meas.)
- ACPR (5G, 100 MHz, 3.4 GHz): -56 dBc (meas.)
- Baseband generator memory: Up to 4 GSa
Additional Documents and Software:
Generate Signals for Wireless and Satellite Communication
Designing 5G and satellite communication systems requires tight design margins and timelines, complex modulation, and adherence to stringent standards. You’re facing a whole new set of design and test challenges, including wider bandwidths, higher frequencies, and greater system complexity. The M9484C VXG provides the industry’s first vector signal generator with up to 54 GHz frequency range and 2.5 GHz of modulation bandwidth in a single instrument, or up to 110 GHz with the V3080A frequency extender and 5 GHz with channel bonding, to enable your next breakthrough.
The M9484C VXG is the industry’s first dual-channel vector signal generator capable of generating signals up to 54 GHz with 2.5 GHz of modulation bandwidth per channel. The VXG vector signal generator helps you deliver the next frontier of wireless technology such as 5G and satellite communications with a fully integrated, calibrated, and synchronized solution.
FREQUENCY COVERAGE UP TO 110 GHZ
The scalable architecture of the M9484C VXG enables higher frequency coverage, wider bandwidths, and multichannel applications with ease and accuracy. It allows you to reduce test complexity and achieve faster repeatable results.
- Cover frequency ranges from 9 kHz to 54 GHz and 110 GHz with a V3080A frequency extender
- Generate the most demanding signals with the industry's widest signal bandwidth
- Enable multi-antenna test applications such as MIMO and beamforming with precise phase coherence and timing synchronization
Generate Signals for Wireless and Satellite Communication
Designing 5G and satellite communication systems requires tight design margins and timelines, complex modulation, and adherence to stringent standards. You’re facing a whole new set of design and test challenges, including wider bandwidths, higher frequencies, and greater system complexity. The M9484C VXG provides the industry’s first vector signal generator with up to 54 GHz frequency range and 2.5 GHz of modulation bandwidth in a single instrument, or up to 110 GHz with the V3080A frequency extender and 5 GHz with channel bonding, to enable your next breakthrough.
The M9484C VXG is the industry’s first dual-channel vector signal generator capable of generating signals up to 54 GHz with 2.5 GHz of modulation bandwidth per channel. The VXG vector signal generator helps you deliver the next frontier of wireless technology such as 5G and satellite communications with a fully integrated, calibrated, and synchronized solution.
FREQUENCY COVERAGE UP TO 110 GHZ
The scalable architecture of the M9484C VXG enables higher frequency coverage, wider bandwidths, and multichannel applications with ease and accuracy. It allows you to reduce test complexity and achieve faster repeatable results.
- Cover frequency ranges from 9 kHz to 54 GHz and 110 GHz with a V3080A frequency extender
- Generate the most demanding signals with the industry's widest signal bandwidth
- Enable multi-antenna test applications such as MIMO and beamforming with precise phase coherence and timing synchronization
