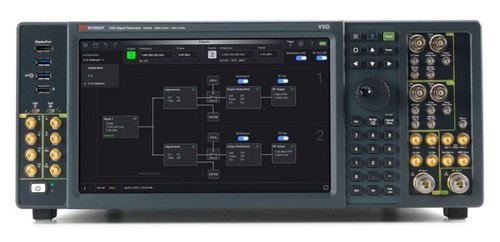

Keysight M9384B VXG Microwave Signal Generator, 1 MHz - 44 GHz
Key Features
- Dual-channel multi-touch millimeter wave vector signal generator with 2 GHz RF bandwidth in a single instrument
- High output power to compensate for system loss and enable 5G power amplifier and over-the-air (OTA) testing
- Phase coherent LO and baseband synchronization for multi-user or beamforming MIMO OTA testing
- PathWave Signal Generation software to accelerate your design and test workflow
Key performance data
- Frequency range (min. to max.): 1 MHz to 14, 20, 31.8 or 44 GHz
- Output power (at 1 GHz): -110 dBm to +23 dBm
- SSB phase noise (at 1 GHz; 20 kHz offset): -140 dBc/Hz (measured)
- Harmonics (at 10 GHz): -30 dBc (measured)
- AM rate: DC to 100 kHz
- FM deviation (maximum): 1 to 128 MHz
- PM phase deviation (maximum in normal mode): 1 to 800 rad
- Baseband Generator Mode: Waveform Playback
- Waveform Playback Memory: 1024 MSa
- RF Bandwidth: 0.5, 1, or 2 GHz
- Output Power @ 39 GHz +21 dBm
Additional Documents and Software:
Availability:
Call or email for delivery time
Get higher confidence in your device’s performance – faster
- Reduce system test complexity with the world’s first dual-channel 44 GHz vector signal generator with 2 GHz modulation bandwidth in a single box
- Overcome OTA system path loss challenges that mmW technology brings with the industry’s highest output power versus EVM and ACPR performance
- Accelerate your product development cycle and gain greater confidence in 5G NR component characterization using PathWave Signal Generation
Unmatched power for 5G applications
- Tackle the multitude of 3GPP conformance test configurations for receiver blocker and interference testing with two 44 GHz channels
- Automatic channel response correction and s-parameter de-embedding improves measurement uncertainty and accuracy in wideband 5G carrier aggregation scenarios
- PathWave Signal Generation software to accelerate your design and test workflow
