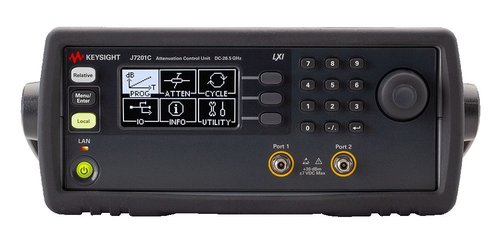

Keysight J7201C Attenuation Control Unit, DC to 26.5 GHz, 0 to 101 dB, 1 dB step
Key Features
Attenuator control capability
- Attenuation sweep function: define the sweep time, number of cycles, and step size for your application
- Relative attenuation step function: set attenuation relative to any value
- Attenuation steps: 0 to 121 dB, 121 to 0 dB, or back and forth for the preset number of cycles (1 to 1,000)
- User selectable sweep time: 50 ms to 10 s, 50-ms increments
Specifications
- 0.03-dB insertion loss repeatability typical per section for the entire 5 million cycles
- Excellent attenuation accuracy and flatness
Remote control and programming
- LXI Class C compliance provides GPIB, USB and LAN connectivity for easy remote integration
Keysight Technologies J7201A/B/C attenuation control units increase the efficiency and throughput of the benchtop and ATE testing. The instrument provides an ideal solution for R&D and manufacturing engineers in wireless communications, tasked with designing, validating and manufacturing multi-technologies wireless communication component and devices such as WiFi, WLAN components and mobile handset base transceiver station (BTS) handover testing. These standalone instruments offer a user-defined attenuation sweep function which lets you set the desired attenuation range, step size, number of cycles and attenuation configuration based on your application’s requirements.
Exceptional insertion loss repeatability per section and excellent attenuation accuracy and flatness over the entire operating life of 5 million cycles ensure precise measurements and reduce calibration intervals reducing the cost of test.
Designed in a half-rack, 2 unit high-form factors, the J7201A/B/C are packed with features and functions that are easily accessible via the soft keys and the rotary knob located on the front panel. LXI Class C compliancy provides GPIB, USB and LAN connectivity for easy remote control and triggering through a full-featured graphical web interface. Calibration data is stored in the instrument’s memory for fast, easy retrieval
