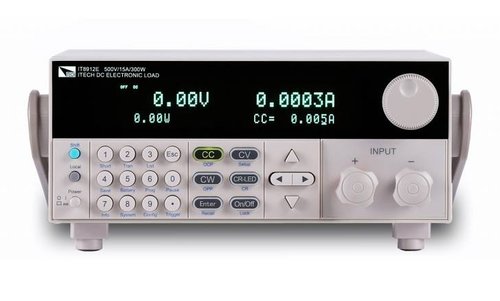

ITECH IT8912E 500V/15A/300W DC Electronic load
DC Input Ratings:
- Maximum power 300 W
- Resolution: 100 mW
- Voltage: 0-500 V
- Resolution: 10 mV
- Current: 0-3 A and 0-15 A
- Resolution: 0.1 mA/1 mA
- Resistance: 0.3-10 Ohm/10 Ohm to 7.5 kOhm
Operating modes:
- Constant Voltage
- Constant Current
- Constant Resistance
- Constant Resistance - LED Mode
- Constant Power
- CC+CV Mode
Setup Accuracy:
- Voltage: (0.05%+0.05% Full Scale)
- Current: (0.05%+0.1% Full Scale)
- Resistance: 0.2%+0.01S
- Power: 0.1%+0.1% Full Scale
Feature set:
- Battery Discharge Test Function
- LED driver test mode
- PWM test mode
- Intilligent fan control. Low acoustic noise
- Accurate readback of current and voltage
- Readback sampling to 50 kHz
- Dynamic test to 25 kHz
- LIST mode with programable rise/fall time
- SCPI programming
- Remote sense
- Extensive protection functions
- High accuracy and resolution
Connectivity:
- RS-232 and USB
- Analog control
IT8912E programmable electronic load has a number of special features making it suitable for test of LED driver circuits and other electronic drivers.
The hardware circuit can realize simulation of LED current for PWM dimming test and current ripple and surge current tests. The voltage current measurement speed can be as high as 50KHZ and the programmable panel can realize OCP/OPP test. Multiple operating modes and powerful programming function.
See datasheet for further details.
