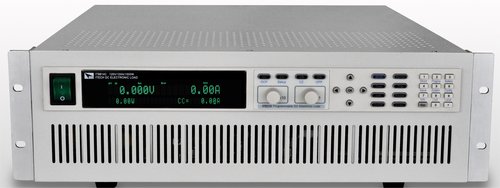

ITECH IT8814B Electronic DC load 500 V, 60 A, 1200W
DC Input Ratings:
- Maximum power 1200 W
- Resolution: 100 mW
- Voltage: 0-50 V and 0-500 V
- Resolution: 1 mV/10 mV
- Current: 0-6 A and 0-60 A
- Resolution: 0.1 mA/1 mA
- Resistance: 0.05-10 Ohm/10 Ohm to 7.5 kOhm
Operating modes:
- Constant Voltage
- Constant Current
- Constant Resistance
- Constant Power
Setup Accuracy:
- Voltage: (0.025%+0.05% Full Scale)
- Current: (0.05%+0.05% Full Scale)
- Resistance: 0.01%+0.08S
- Power: 0.2%+0.2% Full Scale
Feature set:
- Intilligent fan control. Low acoustic noise
- Accurate readback of current and voltage
- Readback sampling to 50 kHz
- Dynamic test to 25 kHz
- LIST mode with programable rise/fall time
- SCPI programming
- Remote sense
- Extensive protection functions
- High accuracy and resolution
Connectivity:
- RS-232 and USB
- Analog control
Availability:
Call or email for delivery time
- The IT8800 series of loads covers power ranges from 150~55KW and customized solutions over 55KW.
- The loads have extensive protection function. OVP/OCP/OPP/OTP.
- They includes dynamic mode. The highest testing speed of current and voltage is 50KHZ,. Memory for 100 sets of data.
- The current cumsumption is measured and digitized at a rate up to 50 kHz. For even higher speed a current monitor output is available. The output generates 0-10 Volt signal.
- The loads supports external analog control as well as built-in RS232 and USB interface to make your control the instrument conveniently. Software is provided to automate test.
- The programmable high-accuracy electronic load has a special LED mode which supports LED power drive test and programmable interface specifications to simulate LED current.
