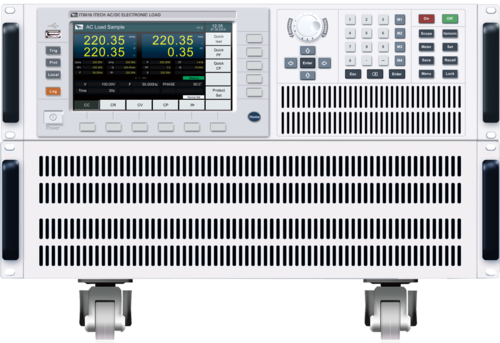

ITECH IT8616 Electronic AC/DC load 50-420 Vrms, 0-40 Arms, 3600VA
AC Input Ratings:
- Maximum power 3600 VA
- Resolution: 400 mW
- Voltage: 5-420 Vrms, (600 Volt peak)
- Current: 0.2-40 A, (120 A peak)
- Resolution: 2 mA
- Frequency 45-450 Hz
- Resistance: 1.5 Ohm-1.25 kOhm
- Resolution: 16 bit
- Crest factor: 1.414 to 5.0
- Resolution: 0.005
- Power factor: 0 to 1 lead or lag
- Resolution: 0.001
AC setup Accuracy:
- Current: (0.1%+0.2% Full Scale)
- Resistance: 0.2% + 0.01 S
- Power: 0.5%+0.5% Full Scale
- Crest factor: 0.5%/Irms + 1% of full scale
DC Input Ratings:
- Maximum power 3600 W
- Voltage: 10-600 V
- Resolution: 10 mV
- Current: 0.2-40 A
Meter Ratings:
- Voltage: 0-600 V
- Resolution: 10 mV
- Current: 0-120 A
- Resolution: 1 mA
Meter modes:
- S (VA), Q (VAR), P (W), Ip+, Ip-, Freq, THDv, CF, PF, R, FFT
Operating modes:
- Constant Current (DC and AC)
- Constant Resistance (DC and AC)
- Constant Power (DC and AC)
Feature set:
- Build in power analyzer
- Oscilloscope function
- Harmonic analysis
- High resolution display
- Adjustable Crest and Power factor
- Parallel and 3-phase coupling
- Intilligent fan control. Low acoustic noise
Connectivity:
- LAN, RS-232 and USB
- SCPI programming
- Analog control
Documents and Software Solutions:
IT8600 is the latest technology in AC/DC electronic load. At 6U height, the IT8616 is very compact for the 420V/20A/3600W input capability.
The AC Frequency can be from 45 Hz to 450 Hz.
The unique oscilloscope display function provides insight into the voltage and current input waveform. It is equipped with measurement modes for different parameters such as inrush current, peak value, effective value, PF (power factor). Also voltage harmonics of as high as 50th order can be measured directly.
The IT8615 provides comprehensive analysis of your DUT performance.
As AC load it provides the possibility to select the value of Power Factor (leading or lagging) and Crest Factor. This offers unique capabilities to test the performance of your device.
As standard the product is equipped with RS232, LAN and USB communication interfaces.
The eLoad is the perfect solution for testing UPS, inverters, AC power supplies and relevant AC electronic components.
