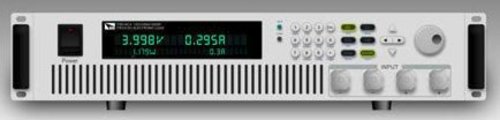

ITECH IT8514B+ Electronic DC load 500 V, 60 A, 1500 W
DC Input Ratings:
- Maximum power 1500 W
- Resolution: 10 mW
- Voltage: 0.1-5/0.1-500 V
- Resolution: 1 mV/10 mV
- Current: 0-6 A and 0-60 A
- Resolution: 1 mA/10 mA
- Resistance: 0.05-10 Ohm/10 Ohm to 7.5 kOhm
Operating modes:
- Constant Voltage
- Constant Current
- Constant Resistance
- Constant Power
Setup Accuracy:
- Voltage: (0.05%+0.02% Full Scale)/(0.05%+0.025% Full Scale)
- Current: (0.05%+0.05% Full Scale)
- Resistance: (0.02%+0.08 S)/(0.01%+0.0008 S)
- Power: 0.2%+0.2% Full Scale
Feature set:
- Intilligent fan control. Low acoustic noise
- Accurate readback of current and voltage
- Dynamic test to 10 kHz
- Pulse, List and Toggle mode
- Short-circuit function
- Remote sense
- Protection function
- High accuracy and resolution
Connectivity:
- RS-232, USB and GPIB
- Support SCPI and register programming
- Analog control
IT8500+ series single channel DC load covers power from 150 to 3 kW. They can be remotely controlled, now also using SCPI commands.
Many older units can be upgraded to support SCPI.
They are designed for middle to high-end applications. They have four operating mode - CV/CC/CR/CP. They include features like Pulse, Toggle mode and Short Circuit for dynamic testing of devices. Accurate read back of parameters are provided.
The IT8500+ series DC loads are versatile instruments for static and dynamic testing of power supplies, batteries, DC-DC converters, battery chargers and many othe applications.
