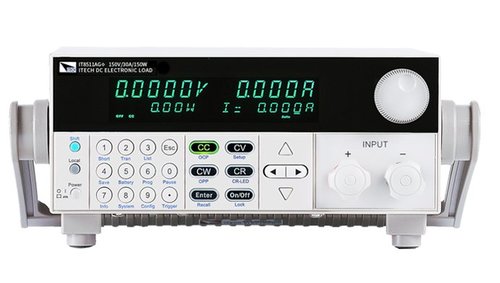

ITECH IT8513BG+ Electronic DC load 600 V, 20 A, 600 W, With USB/LAN Interface
Key Features and Functions
- Maximum power 600 W
- Voltage: 600 V
- Current: 0-20 A
- USB and LAN interface
- 7 operating modes: ?CC/CV/CR/CW/CR+CC/CV+CC/CR-LED
- Ripple measurement
- Dynamic mode up to 20kHz
- OPP/OCP test functions
- Battery discharge mode
- Automatic test functions
- List/dynamic mode
- Current monitoring
- Short circuit / Measure function
Documents and Software Solutions:
The IT8500G+ series is a programmable DC electronic load is specifically designed for high-precision ripple testing, with a sampling bandwidth of up
to 300kHz. With the built-in ripple test function, it’s easy to measure voltage and current ripple of the DUT.
Voltage/current ripple measurement
Ripple is one of the parameters that must be tested for switching power supplies. Excessive ripple may cause interference to the DUT or shorten the life of the DUT. IT8500G+ has a ripple measurement function, and its measurement bandwidth is up to 300kHz, which meets the ripple measurement requirements of switching power supplies or chargers. At the same time, its remote sense function can help to eliminate the impact caused by the voltage drop on the line. No oscilloscope needed, users can just press the ‘down’ button on the front panel to read the voltage ripple value (Vpp/Vp+/Vp-) and current ripple value (Ipp/Ip+/Ip-) of the DUT directly. This greatly simplifies the wiring and operation process.
Battery discharge test
IT8500G+ can perform battery discharge test in CC mode. After selecting the discharge test mode, set the turn off conditions 'off voltage', 'off capacity' and 'discharge time'. When any one of the above conditions is met during the test, the discharge stops and the electronic load automatically switches to the OFF state. During the test, the battery voltage, time and battery discharged capacity can be acquired.
Key Specifications
DC Input Ratings:
- Maximum power 300 W
- Resolution: 10 mW
- Voltage: 0-5/0-600 V
- Resolution: 1 mV/10 mV
- Current: 0-3 A and 0-15 A
- Resolution: 0.1 mA/1 mA
- Resistance: 0.3-10 Ohm/10 Ohm to 7.5 kOhm
Operating modes:
- Static Mode
- Constant Voltage
- Constant Current
- Constant Resistance
- Constant Power
- CR+CC
- CV+CC
- CR-LED
- Dynamic Mode
- Continous Transient
- Pulsed transient
- Toggled transient
- List Mode
Setup Accuracy:
- Voltage: (0.05%+0.02% Full Scale)/(0.05%+0.025% Full Scale)
- Current: (0.05%+0.05% Full Scale)
- Resistance: (0.01%+0.08 S)/(0.01%+0.0008 S)
- Power: 0.1%+0.1% Full Scale
The IT8500G+ series is a programmable DC electronic load is specifically designed for high-precision ripple testing, with a sampling bandwidth of up
to 300kHz. With the built-in ripple test function, it’s easy to measure voltage and current ripple of the DUT.
Voltage/current ripple measurement
Ripple is one of the parameters that must be tested for switching power supplies. Excessive ripple may cause interference to the DUT or shorten the life of the DUT. IT8500G+ has a ripple measurement function, and its measurement bandwidth is up to 300kHz, which meets the ripple measurement requirements of switching power supplies or chargers. At the same time, its remote sense function can help to eliminate the impact caused by the voltage drop on the line. No oscilloscope needed, users can just press the ‘down’ button on the front panel to read the voltage ripple value (Vpp/Vp+/Vp-) and current ripple value (Ipp/Ip+/Ip-) of the DUT directly. This greatly simplifies the wiring and operation process.
Battery discharge test
IT8500G+ can perform battery discharge test in CC mode. After selecting the discharge test mode, set the turn off conditions 'off voltage', 'off capacity' and 'discharge time'. When any one of the above conditions is met during the test, the discharge stops and the electronic load automatically switches to the OFF state. During the test, the battery voltage, time and battery discharged capacity can be acquired.
Key Specifications
DC Input Ratings:
- Maximum power 300 W
- Resolution: 10 mW
- Voltage: 0-5/0-600 V
- Resolution: 1 mV/10 mV
- Current: 0-3 A and 0-15 A
- Resolution: 0.1 mA/1 mA
- Resistance: 0.3-10 Ohm/10 Ohm to 7.5 kOhm
Operating modes:
- Static Mode
- Constant Voltage
- Constant Current
- Constant Resistance
- Constant Power
- CR+CC
- CV+CC
- CR-LED
- Dynamic Mode
- Continous Transient
- Pulsed transient
- Toggled transient
- List Mode
Setup Accuracy:
- Voltage: (0.05%+0.02% Full Scale)/(0.05%+0.025% Full Scale)
- Current: (0.05%+0.05% Full Scale)
- Resistance: (0.01%+0.08 S)/(0.01%+0.0008 S)
- Power: 0.1%+0.1% Full Scale
