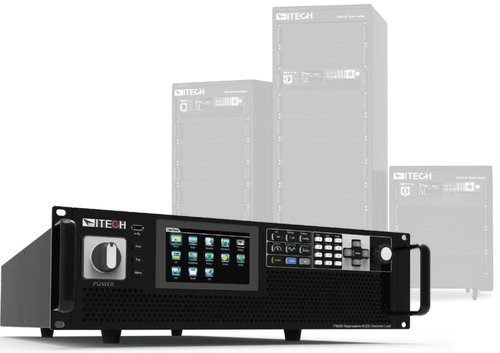

ITECH IT82189E-350-945 Regenerative AC/DC Electronic Load (350 V/606 V, 315 A/945 A, 189 kVA, 9 or 3 phase, height 37U)
Key Specification:
- High power density, 21 kVA in 3U unit
- Master/Slave parallel, power up to 1 MVA and higher
- Frequency: 16-500 Hz
- Voltage 350 V L-N, 606 V L-L
- Adjustable crest factor: 1.414 to 5.0
- Supports phase shift, ranging from -90 to +90 deg
Feature set:
- Highly efficient energy regeneration
- Comprehensive working modes selectable: single-phase, three-phase, reverse phase (split phase). Rated voltage can be extended to 200% under reverse phase (split phase?
- Comprehensive harmonics measurement and analysis, up to 50th.
- Adopt advanced SIC technology
- Support NORMAL/LIST/SWEEP/Surge and Sag modes
- Built-in various waveforms
- Touch screen, simple UI for easy operation
- AC mode supports CC/CP/CR/CS/CC+CR/CE multiple working modes, CE mode can simulate 14 circuit topologies such as single-phase rectifier RLC and parallel RLC
- AC mode supports both rectification and non-rectification modes
- DC mode supports 9 working modes such as CC/CR/CP/CV
- The unit power factor function allows the current waveform to vary with the voltage waveform and the power factor is as close to 1 as possible
- In three-phase AC mode, two access modes are supported: Y and Δ
- Built-in IEC61000-3-2/3-12 pre-compliance test standard
- Support the loading and unloading angle control, the full range of 0-359° can be set
Full protection:
- Various protection functions such as Protect auto clear (UV and FE auto Clear), POVP, POCP, UVP, Software watchdog
Connectivity:
- Built-in USB/CAN/LAN/Digital IO interface, optional GPIB/Analog and RS232
- Support CANopen, Modbus, LXI, SCPI communication
IT8200E series regenerative AC/DC electronic load can efficiently feed power back to the grid. In a 3U rack, it can input up to 21 kVA at most. Through master-slave paralleling connection, its power can be easily expanded to more than 1 MVA.
Its touch screen and GUI allow the editing of various waveforms. Combined with arbitrary waveform editing functions and full protection, IT8200E is a good choice for R&D, testing and system integration.
In AC mode, you can turn on the 'Rectified' function to make the IT8200E electronic load work in the first and third quadrant, with the voltage and current maintaining the same direction. It also provides a variety of working modes, such as CE mode, which can simulate 14 circuit topologies. IT8200E series can be used for a wide range of applications, including V2G, EVSE, Inverter, PCS, UPS, etc.
IT8200E series regenerative AC/DC electronic load can efficiently feed power back to the grid. In a 3U rack, it can input up to 21 kVA at most. Through master-slave paralleling connection, its power can be easily expanded to more than 1 MVA.
Its touch screen and GUI allow the editing of various waveforms. Combined with arbitrary waveform editing functions and full protection, IT8200E is a good choice for R&D, testing and system integration.
In AC mode, you can turn on the 'Rectified' function to make the IT8200E electronic load work in the first and third quadrant, with the voltage and current maintaining the same direction. It also provides a variety of working modes, such as CE mode, which can simulate 14 circuit topologies. IT8200E series can be used for a wide range of applications, including V2G, EVSE, Inverter, PCS, UPS, etc.
