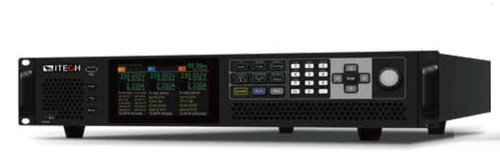

ITECH IT8206-350-30-ATE Regenerative AC/DC Electronic Load (350 V, 30 A, 6 kVA, 1 or 3 phases)
Key Specification:
- High power density, 6 kVA in 2U unit and 15 kVA in 3U unit
- Master/Slave parallel, power up to 960 kVA
- Voltage 350 Volt L-N
- Output frequency: 16-500Hz
- Adjustable crest factor: 1.414 to 5.0
- Phase shift ranging from -90 deg to 90.0 deg
Feature set:
- High efficient energy regeneration
- Comprehensive working modes selectable: single-phase, three-phase, reversed phase. Rated voltage can be extended to 200% under reversed phase
- In three-phase AC mode, two access modes are supported: Y and Δ
- AC mode supports CC/CP/CR/CS/CC+CR/CE multiple working modes.
- CE mode can simulate various circuit topologies such as single-phase rectifier RLC and parallel RLC
- AC mode supports both rectification and non-rectification modes
- DC mode supports nine working modes including CC, CR, CP, and CV
- NORMAL/LIST/SWEEP/Surge and Sag modes
- Loading and unloading angle control, the full range of 0-359° can be set
- Simulate arbitrary waveform output, support csv file import
- Built-in various waveforms
- Touch screen, intuitive UI for easy operation
- The unit power factor function allows the current waveform to vary with the voltage waveform and the power factor is as close to 1 as possible
- Measure up to 16 parameters including Vrms/Arms/Freq/CF/PF/UTHD/ITHD/±Vpeak.
- Comprehensive harmonics measurement and analysis, up to the 50th harmonic. Built-in IEC61000-3-2/3-12 pre-compliance test standard
Full protection:
- Various protection functions such as Protect auto clear (UV and FE auto Clear), POVP, POCP, UVP, Software watchdog
Connectivity:
- Built-in USB/CAN/LAN/Digital IO interface.
- Optional GPIB/Analog and RS232
The new IT8200 Series are regenerative AC Electronic Loads with 88% energy recovery capability. Whether in AC mode or DC mode, the power generated by the DUT can be fed back to the grid, rather than being dissipated as heat, which protects the environment and save the cost of electricity, HVAC and cooling infrastructure.
It is power regenerative capabilities saves electricity and cooling costs. AC load mode supports both rectification and non-rectification, providing CC/CR/CP/CS/CC+CR/CE operating modes. It can simulate multiple circuit topologies under CE mode such as single-phase rectification RLC Circuit and parallel RLC Circuit. IT8200 can be applied to the test of V2G, EVSE, PCS, UPS, inverter, etc.
The IT8200 Series adopt a high power density design, and the power can reach 6 kVA in a 2U unit and 15 kVA in a 3U unit. After parallel connection, the
power can be extended to 960 kVA. Its LCD touch screen with graphical UI interface can directly define different waveforms. Combined with arbitrary waveform editing function and perfect protection function, it is an ideal choice for R&D testing and system construction.
