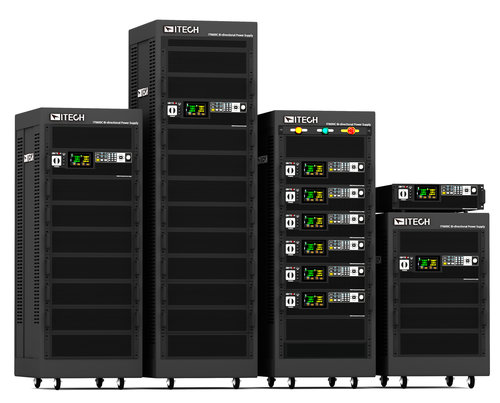

ITECH IT6684D-1200-400 High Power Dual Channel Programmable DC Power Supply (1200 V, 400 A, 84 kW , 15U)
Feature set:
- High power density, up to 42kW in 3U
- Independent dual-channel design in 3U unit, and channels can be connected in series or parallel
- Master-slave current sharing, output max. 10MW in parallel, with no performance lost
- 5-inch touch screen with intuitive GUI
- Data recorder function
- Oscilloscope function, instant data analysis and saving
- CC/CV priority
- List function, dynamic working condition simulation with tens of millions of points
- Redundancy function, helps to check the status of each single unit or cabinet and ensure the overall output
Connectivity:
- Standard:
- USB (USB-TMC/USB-VCP)
- LAN (Rawsocket/Modbus-TCP, Profinet, VNC, VXI-11, Web, Telnet)
- CAN 2.0B (CANopen, CAN2.0)
- Digital IO
- Optional:
- GPIB, EtherCAT, Analog and RS232
Documents and Software Solutions:
IT6600D series DC power supply is a new generation graphical bidirectional DC power supply. Its touch screen and intuitive GUI not only simplify parameter setting and waveform editing, but also improve convenience.
It adopts advanced third-generation SiC technology. A 3U height single unit can output 21kW each in dual channels. If the two independent channels are connected in series/parallel, it can reach maximum power 42kW.
Since one unit can cover the output range of 3-5 normal power supplies, it can be applied to various applications requiring high voltage or high current.
IT6600D's CC/CV priority allows the output mode to be selected based on the specific needs of the DUT, which is especially important during precision measurements. High-precision, high-speed features and a variety of standard communication interfaces enable IT6600D to be widely used in laboratories, production lines and automatic test systems.
