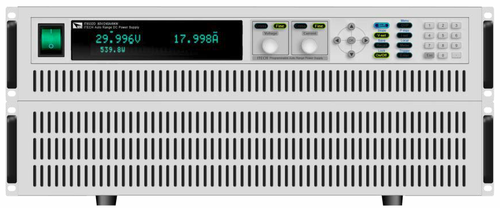

ITECH IT6533C 6000 W DC power supply 200 V / 120 A
DC Output Ratings:
- Maximum 6000 W
- Maximum Output voltage: 0-200 V
- Resolution: 10 mV
- Current: 0-120 A
- Resolution: 10 mA
- Ripple: <200 mVpp
Setup Accuracy:
- Voltage: <0.05% + 100 mV
- Current: <0.2% + 120 mA
Feature set:
- Intilligent fan control. Low acoustic noise
- Current sink with dissipater unit
- Two-quadrant current output
- Up/down time < 3 ms
- List mode programming
- Slew rate setting
- Accurate readback of current and voltage
- CV/CC/CP mode
- Variable output impedance
- Built-in DIN 40839 and ISO-16750-2 standard voltage curve
- Solar panel I-V curve simulation function
- Remote sense
- Master/Slave mode for more units in parallel
- Extensive protection
- High accuracy and resolution
Connectivity:
- LAN, RS-232, RS-484, USB and CAN
- Analog control interfaces
- SCPI command set
IT6500 series offers a full-featured high-performance power test solution. With fast response, these DC power supplies provide users with a new level of power supply performance. From 800 W to 30 kW, the whole series include more than 100 models. The maximum output voltage and current is up to 1000 V and 1200 A respectively. With its auto ranging capability, it also has a super wide range of voltage and current applications. Users can choose the power supply that fits their testing requirements perfectly.
IT6502D/IT6512/IT6512A | Good performance and compact size, designed for general purpose testing in R&D and production. |
IT6500C series | Seamless two quadrant operation, multi-functional and with fast response. Designed for continuous source and sink testing requirements. Useful for solar panel IV simulation, DC motors and battery test. Variable output impedance and slew rate settings. |
IT6500D series | High performance with stable output, designed for automobile, green energy, high speed testing, high-power testing etc. |
