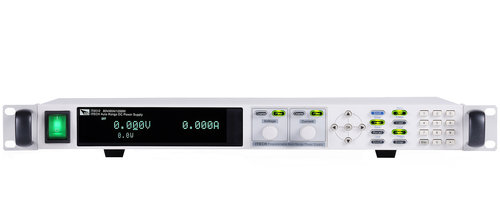

ITECH IT6513 1200 W DC power supply 150 V, 30 A
DC Output Ratings:
- Maximum 1200 W
- Maximum Output voltage: 0-150 V
- Resolution: 3 mV
- Current: 0-30 A
- Resolution: 1 mA
- Ripple: <60 mVpp
Setup Accuracy:
- Voltage: <0.02% + 30 mV
- Current: <0.1% + 0.1% of full scale
Feature set:
- Intilligent fan control. Low acoustic noise
- Accurate readback of current and voltage
- Slew rate setting
- CV/CC/CP mode
- Remote sense
- LIST mode
- DIN 40839 and ISO-16750-2 voltage curve
- Master/Slave mode for more units in parallel
- Extensive protection
- High accuracy and resolution
Connectivity:
- RS-232, RS-484 and USB
- SCPI programming
- Analog control
IT6500 series offers a full-featured high-performance power test solution. With fast response, these DC power supplies provide users with a new level of power supply performance. From 800 W to 30 kW, the whole series include more than 100 models. The maximum output voltage and current is up to 1000 V and 1200 A respectively. With its auto ranging capability, it also has a super wide range of voltage and current applications. Users can choose the power supply that fits their testing requirements perfectly.
IT6502D/IT6512/IT6512A | Good performance and compact size, designed for general purpose testing in R&D and production. |
IT6500C series | Seamless two quadrant operation, multi-functional and with fast response. Designed for continuous source and sink testing requirements. Useful for solar panel IV simulation, DC motors and battery test. Variable output impedance and slew rate settings. |
IT6500D series | High performance with stable output, designed for automobile, green energy, high speed testing, high-power testing etc. |
IT6500 series offers a full-featured high-performance power test solution. With fast response, these DC power supplies provide users with a new level of power supply performance. From 800 W to 30 kW, the whole series include more than 100 models. The maximum output voltage and current is up to 1000 V and 1200 A respectively. With its auto ranging capability, it also has a super wide range of voltage and current applications. Users can choose the power supply that fits their testing requirements perfectly.
IT6502D/IT6512/IT6512A | Good performance and compact size, designed for general purpose testing in R&D and production. |
IT6500C series | Seamless two quadrant operation, multi-functional and with fast response. Designed for continuous source and sink testing requirements. Useful for solar panel IV simulation, DC motors and battery test. Variable output impedance and slew rate settings. |
IT6500D series | High performance with stable output, designed for automobile, green energy, high speed testing, high-power testing etc. |
