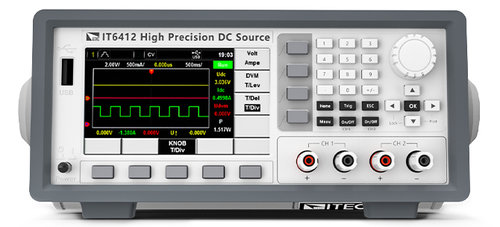

ITECH IT6412S Dual Channel and bipolar DC power supply, CH1: 45 W, +/-15 V, +/-5 A - CH2: 45 W, 15 V, +/-5 A
DC Output Ratings:
- 2 independent channels
- Maximum power 3 W
- Output voltage: ±15 V/+15 V
- Resolution: 1 mV, 10 uA
Setup Accuracy:
- Voltage: <0.02% +3 mV
- Current: <0.05% +50 uA
Feature set:
- Four quadrant operation
- Ultrafast transient response time < 20μs
- Full load rising time to 500 μs
- Accurate Battery Simulation
- Battery charge/load
- Oscilloscope waveform display (DSO)
- High resolution color display
- Built-in high accuracy DVM
- PC software available
- Variable output impedance 0-1Ω
- LED test function
- List function achieves voltage/current output as programmed
Connectivity:
- LAN and USB
- SCPI programming
Documents and Software Solutions:
IT6400 is a high speed linear DC source, which provides bipolar output and four quadrant operation. This means it can operate as source and load.
The maximum output voltage of a single channel is up to ± 60 V. Maximum output current is up to ± 10 A. Maximum voltage and current depends on model number.
The unique bipolar voltage/current output means the IT6400 series can be used as a bipolar power source or a bipolar electronic load. The battery simulating function is useful for development and production testing of portable, battery-operated devices. IT6400 has ultrafast transient time of less than 50 us.
- IT6411 is a single-channel bipolar DC source. Dual range source. Maximum 45 W, ±15 V, ±5 A
- IT6411S is a single-channel bipolar DC source with uA setting and nA readback resolution. Maximum 1.5 W, ±15 V, ±0.1 A
- IT6412 is a dual-channel bipolar DC source with two independent output channels. CH1: 45 W, ±15V, ±5A - CH2: 45 W, 15V, ±5A
- IT6431 is a single-channel bipolar DC source. Dual range source. Maximum 150 W, ±15 V, ±10 A
- IT6432 is a single-channel bipolar DC source. Dual range source. Maximum 150 W, ±30 V, ±5 A
- IT6433 is a single-channel bipolar DC source. Dual range source. Maximum 150 W, ±60 V, ±2.5 A
PC software is available for easy operation.
