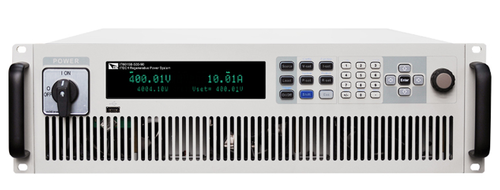

ITECH IT6018B-2250-25 Regenerative Power System (18 kW, 2250 V, 25 A)
DC Output and Load Ratings:
- Maximum 18 kW
- Maximum Output voltage: 0-2250 V
- Current: 0-25 A
DC Output Modes:
- CV, CC, Battery Simulation, I-V simulation, adjustable output impedance
DC Load Modes:
- CV, CC, CR, CP, Battery Test
Feature set:
- Bidirectional enegy flow between the DUT and the AC grid
- Source and Sink function
- Built-in arbitrary waveform generator
- Battery Simulation
- Adjustable output impedance
- Support solar panel I-V curves simulation
- Stand-alone power up to 120 kW, expandable in parallel up to 960kW
- High power density design provides 18kW in 3U space
- High resolution, high precision and high stability
- Built-in voltage curves comply with DIN 40839, ISO-16750-2/ISO21848 automotive standards
- Parallel connection
- Power failure protection
- OCP/under current protection /OVP/OTP/OPP/UVP, grid fault protection and fault storage
Connectivity:
- Built-in USB/CAN/LAN/digital IO interface
- Optional GPIB, Analog and RS232
Documents and Software Solutions:
IT6000B integrates bidirectional power supply and regenerative electronic load into one 3U unit.
Exceptional easy-of use. Only one button is needed to switch between the bidirectional power supply and the regenerative electronic load. It can be used not only as a powerful stand-alone bidirectional power supply; but also as an independent regenerative electronic load, to absorb the consumed energy and feedback cleanly to the grid.
IT6000B offers standard two-quadrants functionality.
IT6000B provides 7 voltage ranges, up to 2250 V, supports master-slave parallel with even current distribution up to 1152 kW.
Built-in waveformgenerator supports generating arbitrary waveforms, and imports LIST files for waveforms via USB interface. IT6000B is the combination
of reliability, high efficient testing, safe and multiple measurement functions.
IT6000B is a family of bi-directional, regenerative power system with excellent performance, extensively used in aspects of high power battery,
automotive electronics, green energy, high speed testing etc.
- IT6000B can accurately simulate the I-V curve from a solar panel
- IT6000B battery simulation feature simulates the battery supply power to the inverter
- IT7600 and IT8600 simulate the electric AC supply input
- The IT600B with an IT7600 AC source can test three input modes of inverters: Battery input, AC Input and PV input
- The function of IT6000B single feedback load can also be used for battery discharge test to characterize battery performance
